Adjusting Straw Distributor Baffles

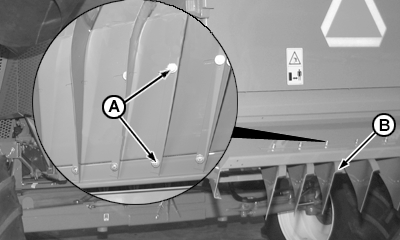

Loosen nuts (A) and adjust baffles (B) according to the required distance for straw to be thrown.

NOTE: The greater the angle of the baffles, wider will be the area of straw spread.

ML70882,0000811 -19-01AUG05-1/1
