Adjusting Harvest Performance Monitor Potentiometers

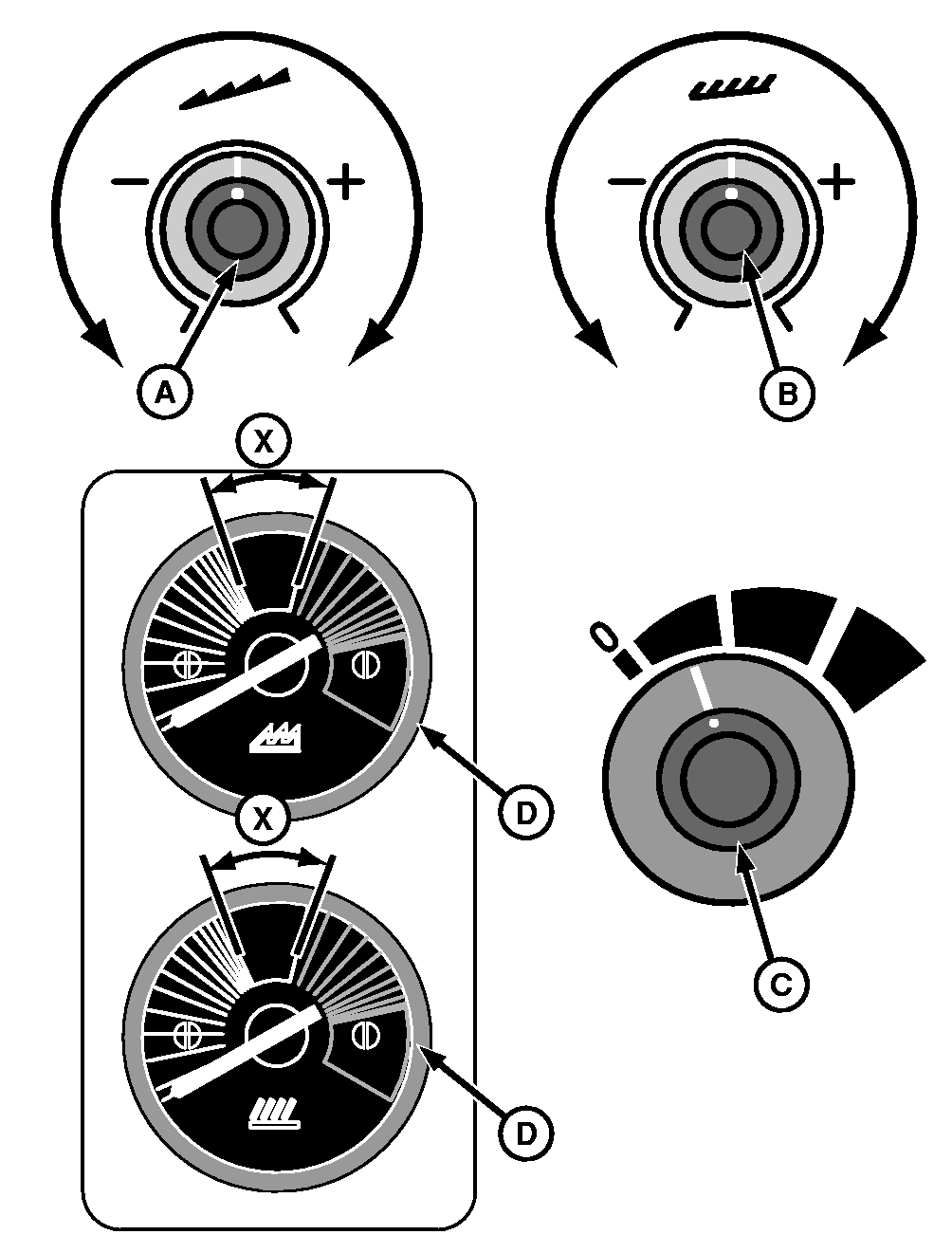

After adjusting the combine to an acceptable grain loss level, set rotary switch (C) to position 1 and potentiometers (A and B) to center position.

In this initial adjustment and at the same harvesting speed conditions the gauges (D) should be in the central green range (X).

If they do not coincide, use potentiometers (A and B) to fine tune until the needles stay in the central green range (X). If this still should not be possible, change rotary switch (C) position to 2 or 3 and change potentiometers (A and B) until gauge needles are in green range (X).

NOTE: Green range (X) on gauges indicates maximum acceptable loss level as defined by the operator and represents a relative grain loss value.
