Header Drive Tumbler Switch (With Operating Lock)

NOTE: With this switch in the ON position, the engine start-up system is blocked.

Requirements:

  • Engine idling.
  • Road safety switch in field position.
  • Separator engaged.

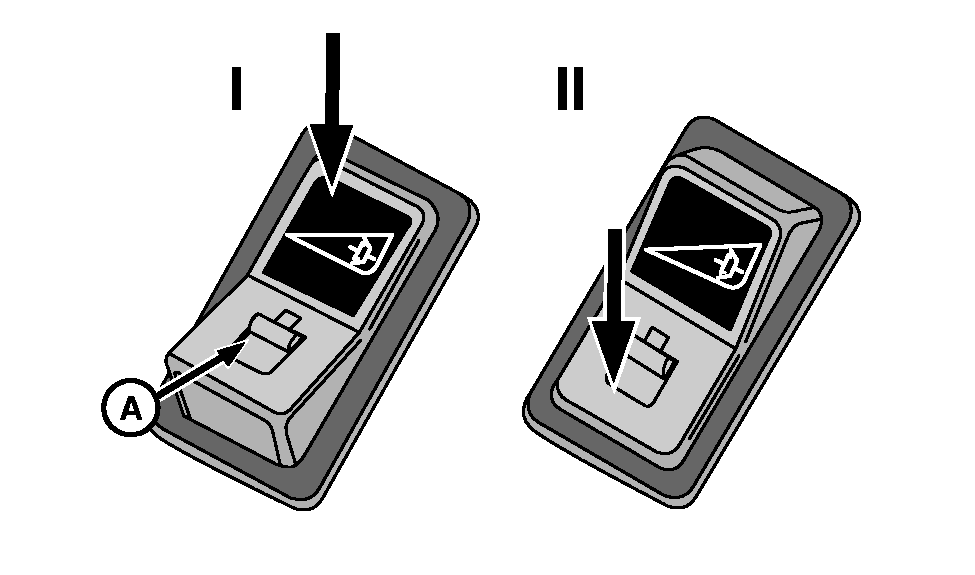

Engaging Header Drive (I):

Push up operating lock (A) and depress top part of switch (symbol).

Disengaging Header Drive (II):

Depress lower part of switch.

NOTE: For emergency stop, use quick "STOP" switch (B) on multi-function control handle. In this case, header disengages with header drive switch in ON position, to reactivate this function, it is necessary to turn header drive switch OFF and ON again.
