Feeder House/Header Reverser

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive.

Raise reel before engaging reverser. Backing out a crop "slug" into a turning reel may damage it.

1. I - Disengage header drive (using header engage switch) and back up combine 1-2 m (3-6 ft).

2. Run engine at slow idle speed.

causym CAUTION: High engine speed can cause damage to reverser and feeder house.

3. Step on left-hand side of reverser pedal and hold pedal down to engage reverser and header.

NOTE: The pedal must be held down. Otherwise reverser will not engage.

4. Step on right-hand side of reverser pedal to disengage reverser function.

5. Engage header again.

6. Increase engine speed and resume harvesting.

IMPORTANT: For safety reasons the reverser works only with threshing engaged and header disengaged.

NOTE: For emergency stop, use quick "STOP" switch (B) on multi-function control handle. In this case, the reverser disengages with the pedal activated; to reengage the reverser, the pedal must be deactivated and then activated again.

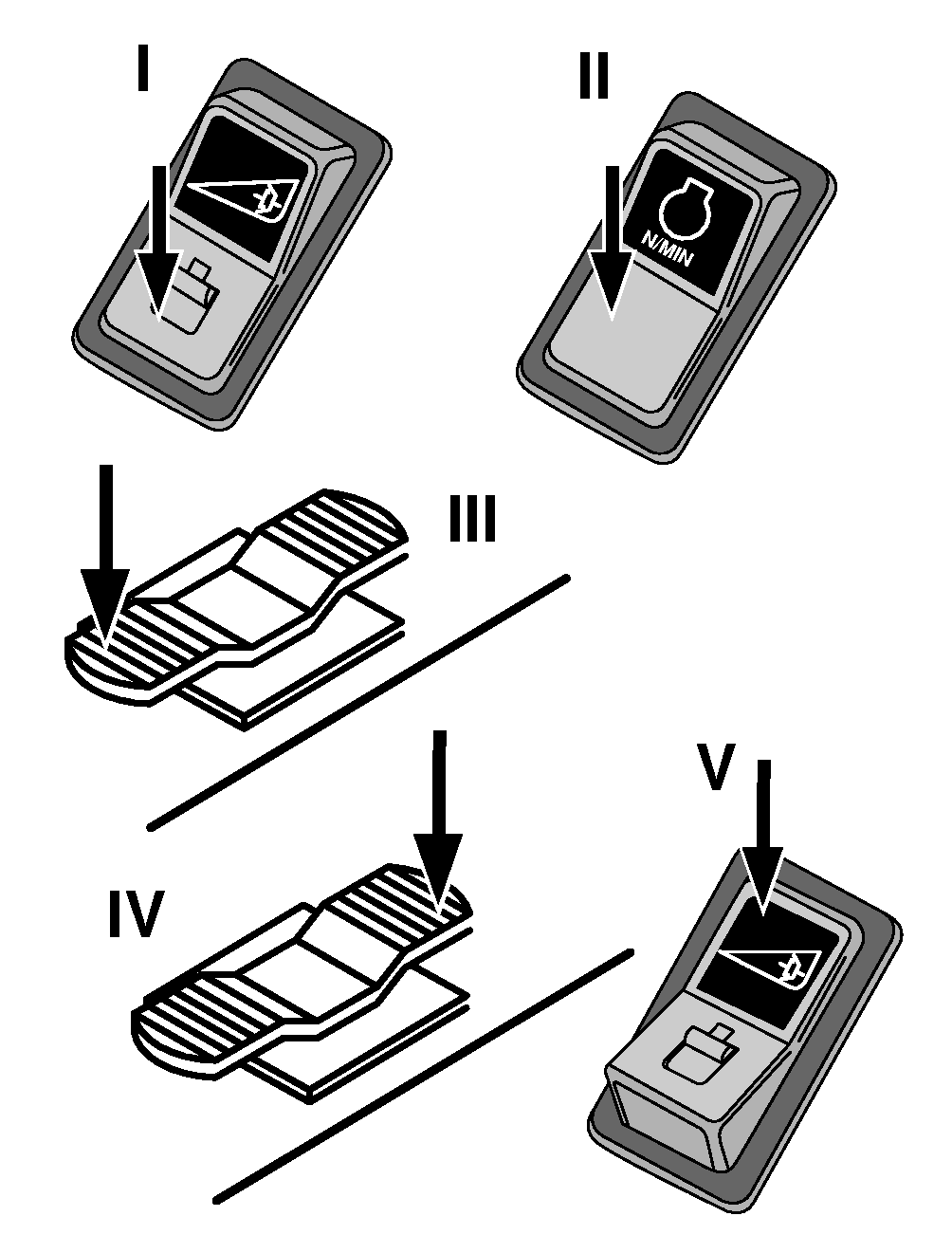

CQ245310
