Rice Harvesting Attachment

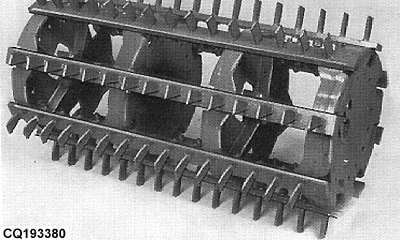

This attachment consists of rice cylinder and rice concave.

Rice is threshed through friction and by the battering effect of cylinder teeth and spiked concave.

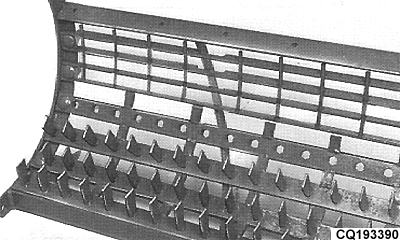

Standard concave is equipped with three bars of spiked teeth. You can add another teeth spiked bar to enhance threshing.

Using a hammer with a piece of hardwood, drive in new teeth. Firmly bolt down teeth. Install teeth with the elongated side to the rear, as seen in direction of rotation.
