Adjusting Belt Guide of Unloading Auger Drive

CAUTION: To prevent accidents shut off engine before adjusting belt guide.

Start engine and engage unloading auger transmission. Turn off engine (with transmission engaged) and remove starter key.

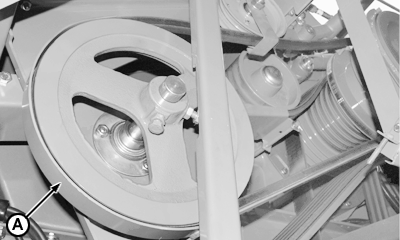

Adjust belt guide (A) through its supports to obtain uniform spacing of 3 to 5 mm (0.1 to 0.2 in.) between belt and guide.
