Trailer Hitch

IMPORTANT: Stop machine on a flat surface, shut off engine and set parking brake.

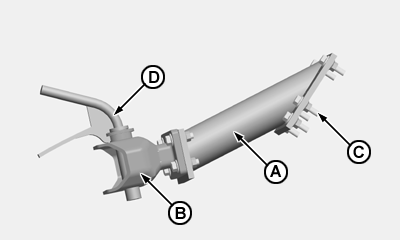

Hitch (A) is used to hook up header trailers to combine. It has a rotating end (B) to facilitate hooking up.

Attach it to combine rear axle by means of four bolts (C). Hook up trailer to rotating end (B) with pin (D).

NOTE: Connect trailer clearance lights connector to combine at point next to hitch (A).

ML70882,0000948 -19-06JUN06-1/1
