NEVER replace engine fan belt. Consult your John Deere dealer to carry out this replacement.

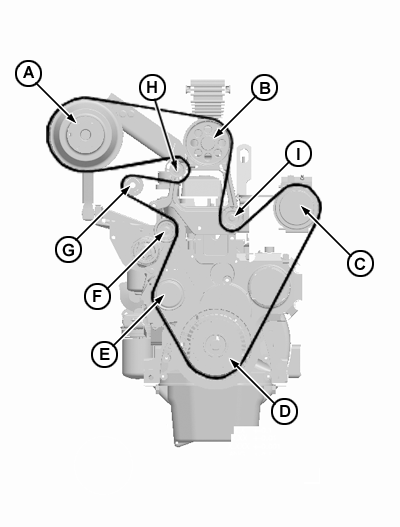

A-Fan B-Air Compressor C-Air conditioning compressor D-Engine torsional damper E-Water pump F-Belt tensioner G-Alternator H-Guide I-Guide
ML70882,000095D -19-22MAY06-1/1
