Replacing Rotary Screen Drive Belt

causym CAUTION: Shut off engine and remove starter key.

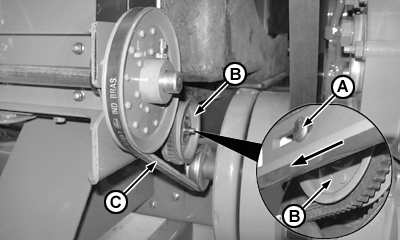

1. Loosen screw (A) and move tensioner (B), as shown.

2. Remove belt (C).


A-Bolt
B-Tensioner
C-Belt

CQ271610

ML70882,0000961 -19-18AUG06-1/1
