Removing Engine Air Filter

Perform service on the air filter in combines only when the air filter indicator light remains permanently on. The air filter has two filter inserts: filter insert and internal insert.

IMPORTANT: When cleaning or changing air filter, shut down engine and remove starter key.

Removing Filter Insert:

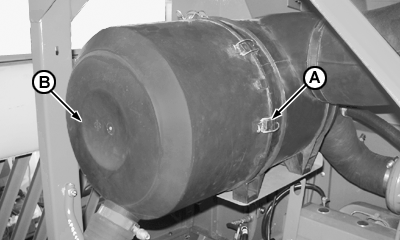

1. Remove housing (B) from air filter by releasing locking clamps (A).

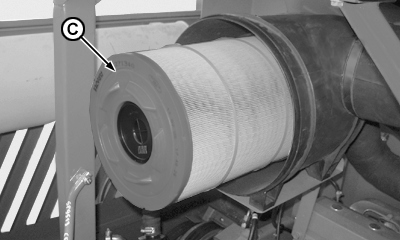

2. Grip edges of filter insert (C) and pull it out by hand.
3. Clean inside of housing with a dry rag and afterwards with a rag moistened in water. Also clean gasket on edge of filter insert.

A-Locking clamps
B-Housing
C-Filter insert

ML70882,0000962 -19-31MAY06-1/2

Removing Internal Insert:

NOTE: Remove internal insert (A) only when filter insert cleaning is being carried out for the third time.

NEVER clean internal insert. Always replace it if removed.

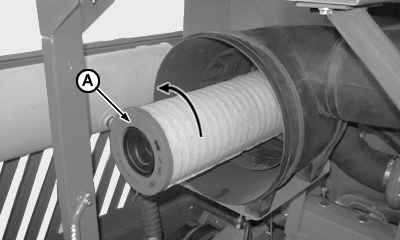

1. Turn internal insert (A) counterclockwise.
2. Grip edges of internal insert and pull it out by hand.
3. Clean inside of housing with a dry rag and afterwards with a rag moistened in water.
4. Install a new, genuine internal insert.

IMPORTANT: NEVER run engine without filters installed.

Use only genuine John Deere parts.

A-Internal insert

ML70882,0000962 -19-31MAY06-2/2
