OMCQ76042: 1450 CWS, 1470 WTS, 1570 CWS and 1570 WTS Combines, Block File: ML70882_000096A_19

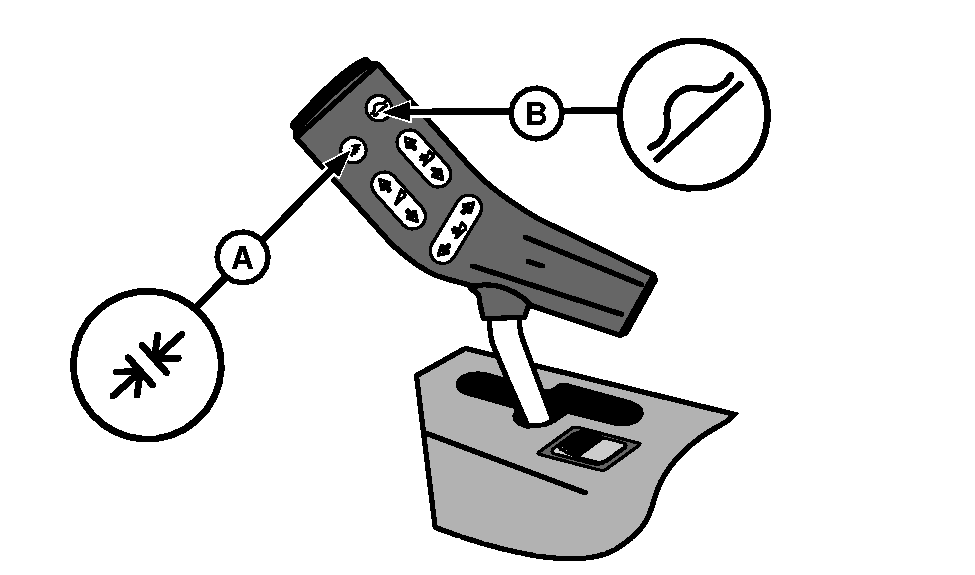

A-Button
B-Button

C-AHC engage switch (Active Header Control)

D-Float enable switch

E-Header lateral tilt enable switch (automatic mode)

IMPORTANT: AHC enable switch (C) must be engaged to enable header lateral tilt (automatic mode) using switch (E).

NOTE: Press the symbol on switch to enable this function.

Functions of Multi-Function Control Handle Buttons
	With AHC and Float disabled		With AHC enabled and Float disabled		With AHC disabled and Float enabled		With AHC enabled and Float enabled
	Button A	Button B	Button A	Button B	Button A	Button B	Button A	Button B
300 and 600 Series rigid header without automatic header height control sensor	Cut Position*	No function	No function	Break Off Cut	Cut Position*	Float	No function	Float
600 Series rigid header with automatic header height control sensor	Cut Position*	No function	Return to cut (AHC)**	Break Off Cut	Cut Position*	Float	Return to cut (AHC)**	Float
* The combine takes the feeder house sensor reading.
** The combine takes the header sensor reading.

ML70882,000096A -19-29MAY06-1/1
