Electrical Adjustment of Straw Distributor Baffles

Adjustment is only possible with separator engaged.

Operation:

In windy conditions and/or on slopes, straw distribution may be adapted to harvesting conditions. When working on slopes, this switch is used to regulate the direction of straw distribution baffles. This will avoid downhill straw accumulations.

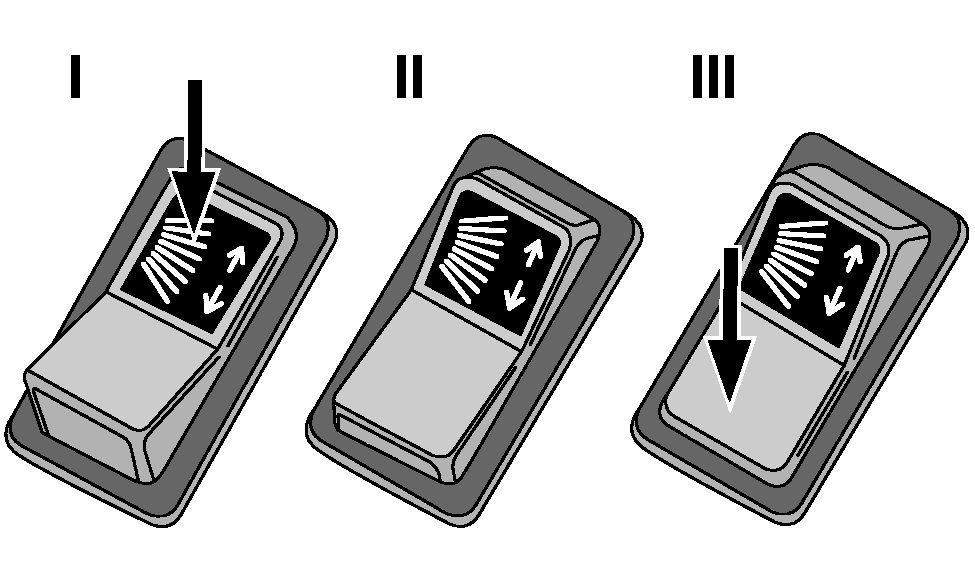

I-Material is thrown to the right
II-Off
III-Material is thrown to the left

ML70882,0000970 -19-02JUN06-1/1
