Operator Presence Switch

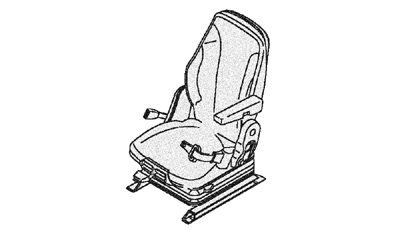

Safety switch is located in operator seat. It is activated 5 seconds after the operator leaves the seat with the combine running.

When activated, it will disengage the unloading auger, header and feeder house reverser functions.

To re-engage any of the functions, sit down again on operator seat and turn the corresponding switch OFF and then ON.

IMPORTANT: Never disable this switch.

ML70882,0000979 -19-02JUN06-1/1
