Towing the Combine

1. Prepare combine as shown under "Driving Combine on Public Roads".

causym CAUTION: Do not use flexible ropes to tow the combine, always use a towing bar. Connect towing bar to towing eye on front axle.

2. Release parking brake

3. Do not exceed 20Km/h (12.4 mph) when towing combine.

IMPORTANT: Towing at greater speeds may damage tires, transmission and final drives.

NOTE: Comply with local traffic regulations when towing combine.

4. Place gearshift lever in neutral position.

NOTE: In case of emergency, it is possible to tow the machine for a short distance (less than 50 m) without following this procedure.

IMPORTANT: In certain cases it may be necessary to disable the shift lock function to place gear shift lever in neutral.

To disable lock:

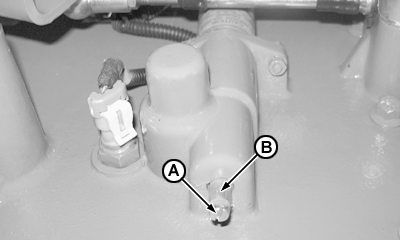

1. Remove screw (A) and spacer (B), reinstalling only screw (A).

2. Turn screw all the way in so the shifter cam is unlocked.

CQ265860
CQ245020
CQ265850

ML70882,000097D -19-06JUN06-1/1
