Straw Distributor Operating and Transport Position

Operating Position:

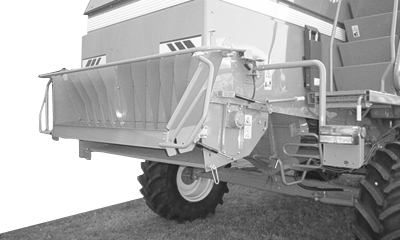

Set the straw distributor as illustrated in the "Operating position" figure and lock it in place with nuts (B), turning them clockwise on both sides.

Transport Position:

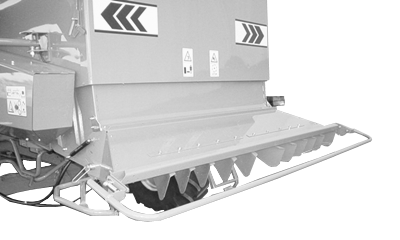

Loosen nuts (B) and raise the straw distributor until it touches on combine rear as shown in the "Transport position" figure.

Lock it with latches (D).

NOTE: When the straw distributor is in the transport position, position the guard rail in front of baffles. See the illustration "Transport position".

B-Nut
D-Lock
