Adjusting Straw Distributor Baffles with Electric Motor

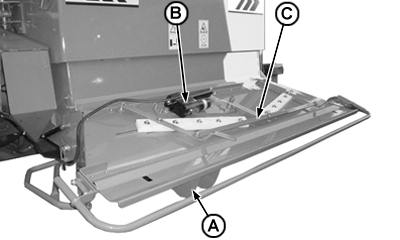

Straw distributor baffles (A) are adjusted by electrical motor (B) which moves the adjustable bars (C). The adjustment and control of position is made from the operator's cab.

CQ219271

ML70882,0000987 -19-06JUN06-1/2

Manual Deflector Adjustment

Straw spreading width can be adjusted according to straw moisture or if a decrease or increase of the spreading angle to one side is required.

Adjust bars (A) by removing pin (B) as required. The adjustable bars must be aligned.

Select one of the holes depending on the spreading width required: Adjust the adjustable bars (A) outwards for a wider spread, or inwards for a narrower spread.

NOTE: Be careful with the washer under pin (B), which must be assembled.

CQ219301

ML70882,0000987 -19-06JUN06-2/2
