Grain Tank Extension

CAUTION: The grain tank extension must be in transport position when the combine is transported on roads, due to the height limit on public roads.

Operating position:

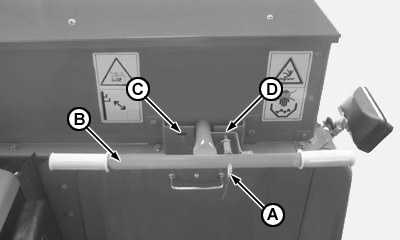

Pull locking lever (A) and turn lever (B) 180° clockwise until locking lever slots into hole (C).

Transport position:

Pull locking lever (A) and turn lever (B) 180° counterclockwise until locking lever slots into hole (D).

ML70882,0000988 -19-23MAY06-1/1
