Access to Grain Tank with Extension

IMPORTANT: Grain tank extension should be in field position. See "Grain Tank Extension".

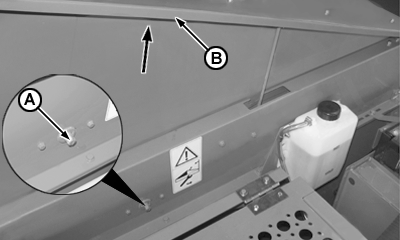

1. With an open end wrench, turn pin (A) counterclockwise until cover (B) can be raised.

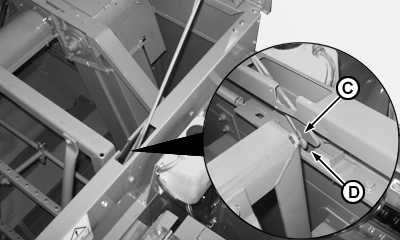

2. Cover (B) should be raised until rod (C) goes through hole (D) to lock the cover in open position.

Closing the cover:

1. Turn pin (A) counterclockwise again, closing the cover until rod (C) is released.

ML70882,0000989 -19-23MAY06-1/1
