Opening Shield of Lower Threshing Cylinder Pulley

1. Remove pin(s) (A).

2. Remove nut (B) and shield.

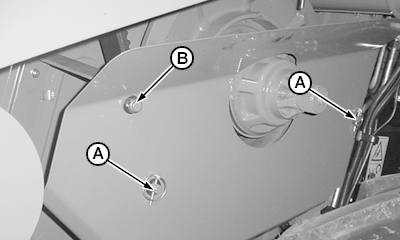

CQ247970

Combines without reduction gear

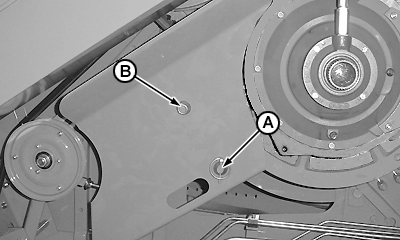

CQ248090

Combines with reduction gear

ML70882,000098B -19-23MAY06-1/1
