Installing Tooth Concave Cover Plates

The installation of cover plates is recommended for harvesting barley.

The purpose of the cover plates is to increase threshing efficiency.

NOTE: It is not necessary to remove the concave to install the plates.

NOTE: Begin harvesting with one cover plate. Then install the second if needed.

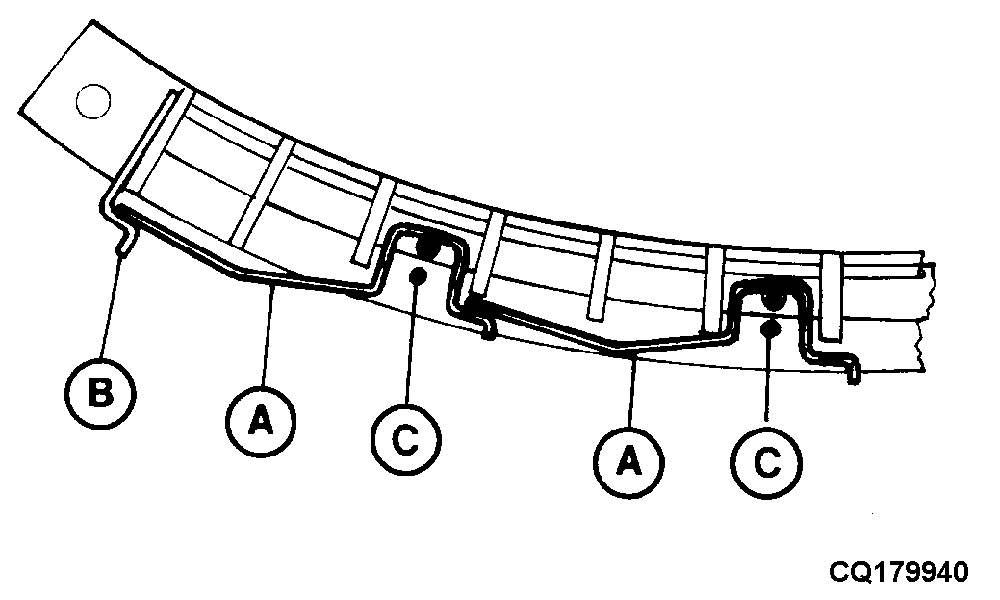

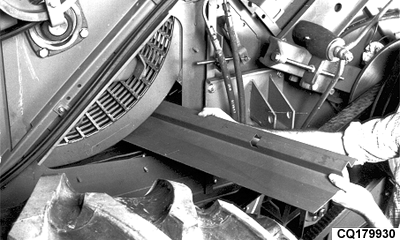

1. Seat cover plate (A) on support (B).
2. Attach the cover plate with mounting bolts (C).
