OMCQ76042: 1450 CWS, 1470 WTS, 1570 CWS and 1570 WTS Combines, Block File: ML70882_00009B1_19

causym CAUTION: Always remove ignition key before performing maintenance work on fuel filter. Avoid fire hazards!

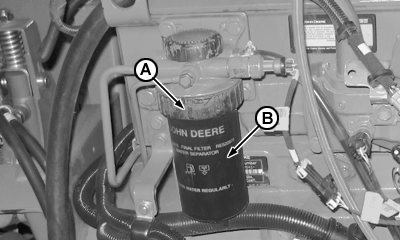

1. Unfasten ring (A) and remove filter (B).

2. Install new filter, correctly aligning marks on filter and filter base.

3. Tighten ring (A) until it slots into position.

ML70882,00009B1 -19-29MAY06-1/1
