Towing Trailer

causym CAUTION: DO NOT exceed specified values. Excessive loading or speeding could result in bodily injury or machine damage.

If towing a trailer, make sure maximum draft load and maximum vertical load on hitch are not greater than 2500 Kg (5511 Ib) and 100 Kg (220 Ib), respectively.

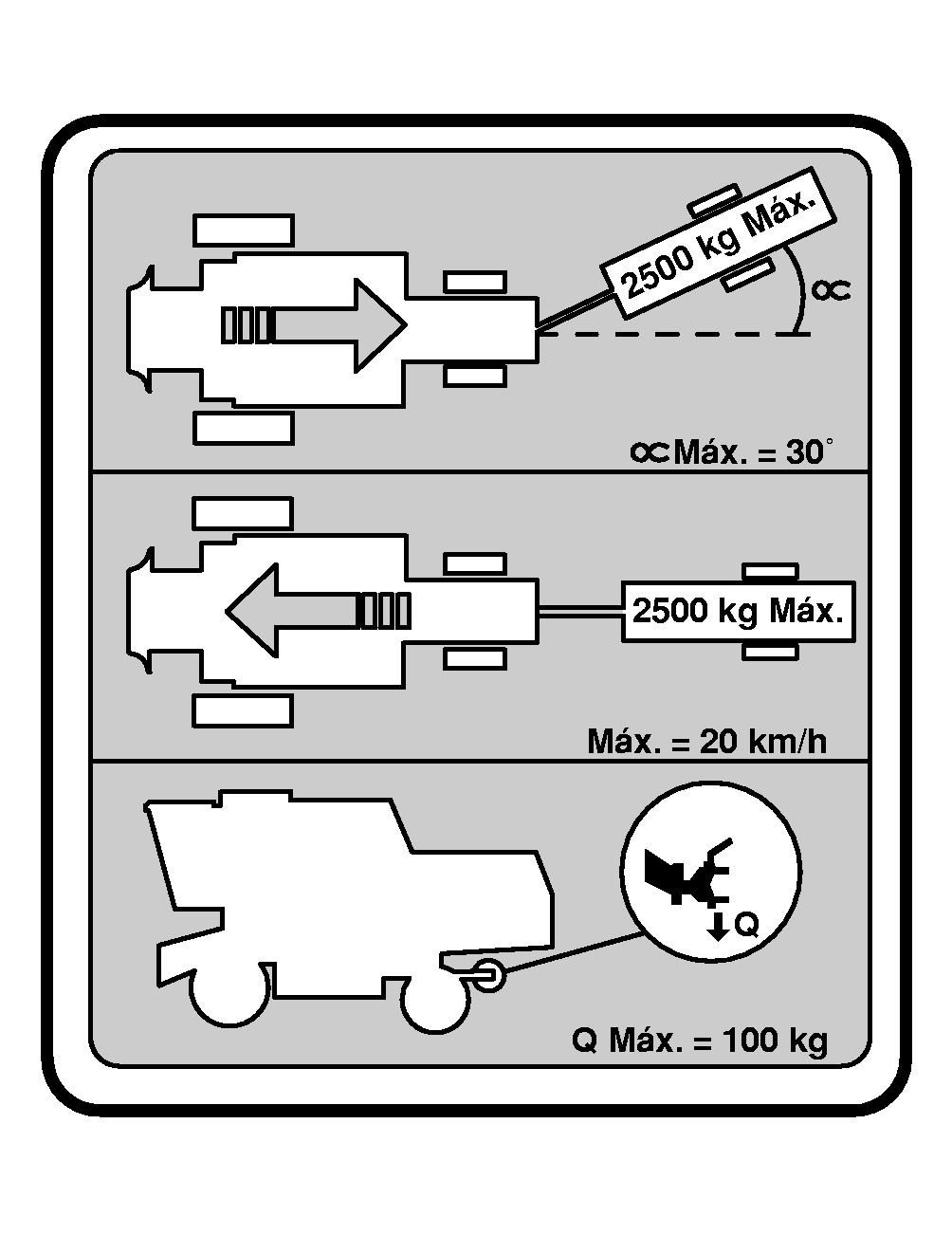

Do not tow trailer at a speed greater than 20 km/h (12.4 mph) and, if the combine reverses with trailer connected, the trailer maximum angle of lateral tilt should not exceed 30°, as shown.

CQ277500

ML70882,00009C7 -19-11AUG06-1/1
