IMPORTANT: Recommended service intervals are for average conditions. Service more frequently if combine is used in extreme conditions.

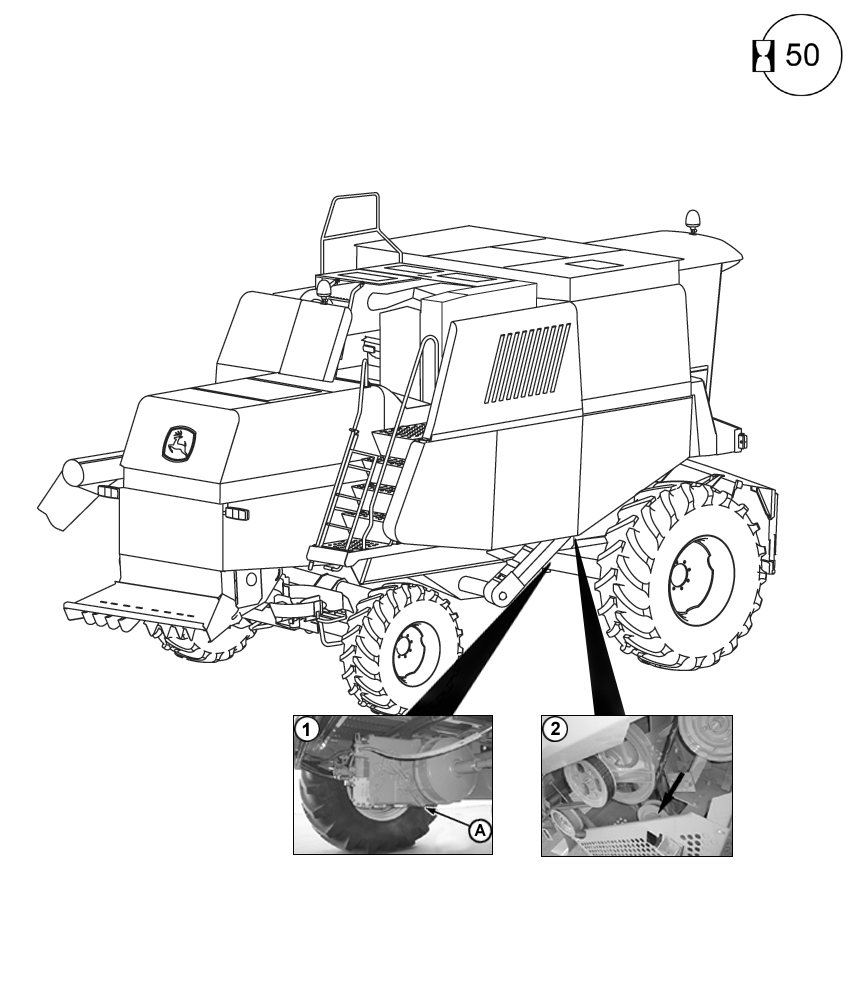

1. Carry out the first transmission housing oil change, removing the spent oil by means of drain plug (A).

Thereafter, change transmission oil every 500 hours.

2. Lubrication points. One point on each side of machine, on cleaning system fan bearings.
