ML70882,00009D4 -19-11JUL07-1/2

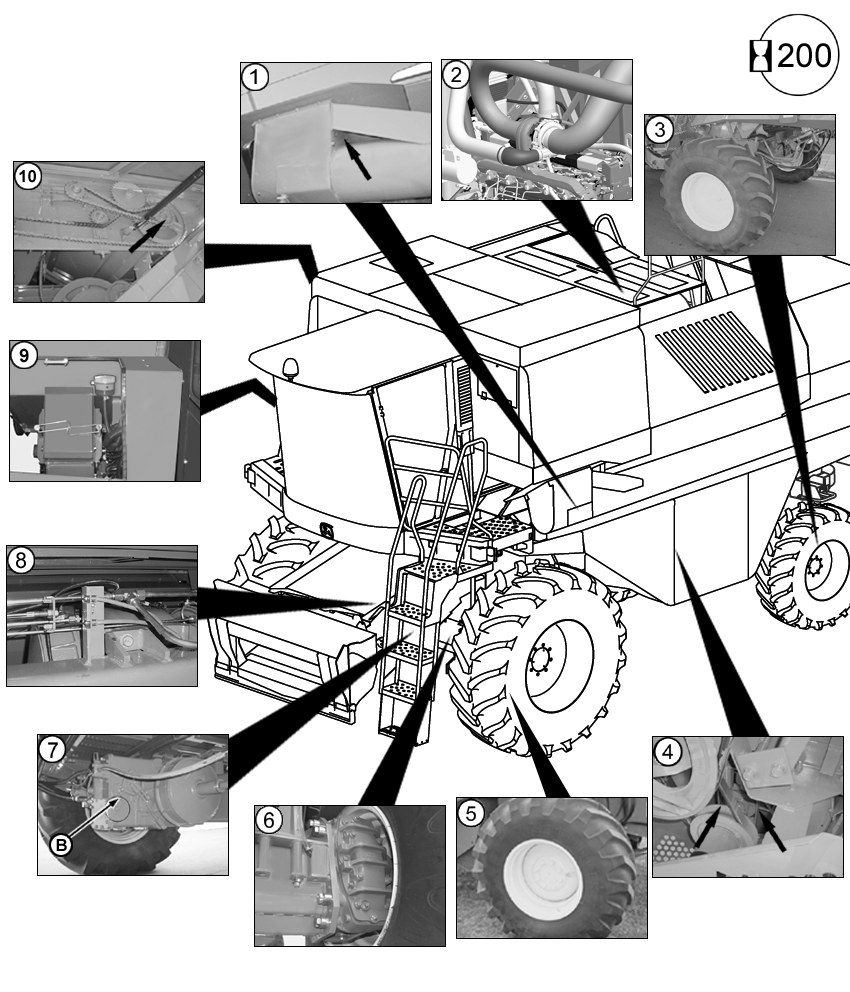

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

NOTE: Four-Wheel Drive: Retighten wheel nuts to 200 N·m (145 lb-ft).

2. Check clamps and hoses of turbocharger feeder system. Retighten if necessary.

CAUTION: Avoid burns as a result of contact with hot parts. Only carry out check with engine at ambient temperature.

3. Retighten rear wheel nuts to 180 N·m (130 lb-ft).

4. Lubrication points. One point on pulley and the other on fan bearing.

5. Retighten front wheel nuts to 550 N·m (400 lb-ft).

NOTE: Refer to "Installing Front Wheels" for further details.

6. Check oil level of final drives. Fill up if necessary.

7. Check oil level in transmission housing through oil level check plug (B). Fill up if necessary. See "Changing Transmission Housing Oil".

8. Check parking brake cable and readjust, if necessary.

9. Check level of brake fluid. Pull cap for access. Fill up if necessary.

10. Lubrication points. One point on the unloading auger drive gear.

ML70882,00009D4 -19-11JUL07-2/2
