OMCQ76042: 1450 CWS, 1470 WTS, 1570 CWS and 1570 WTS Combines, Block File: ML70882_00009E0_19

1. Prepare the combine for the type of crop to be harvested.

NOTE: See information on preparation in this section.

2. Prepare and hook up header to combine.

NOTE: See header preparation and coupling information in the Cutting Platform Operator's Manual.

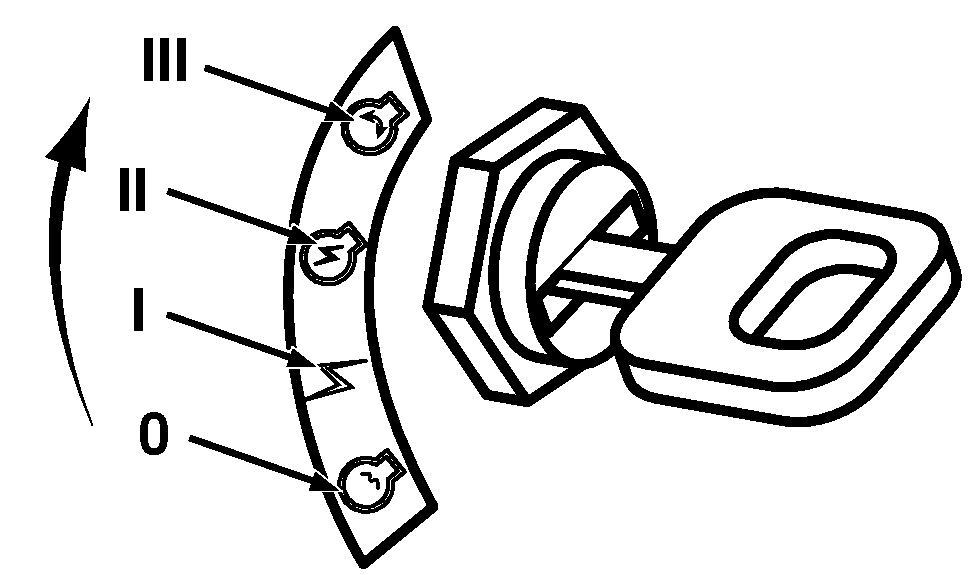

3. Start engine, leaving it running at slow idle.

ML70882,00009E0 -19-16JUN06-1/4

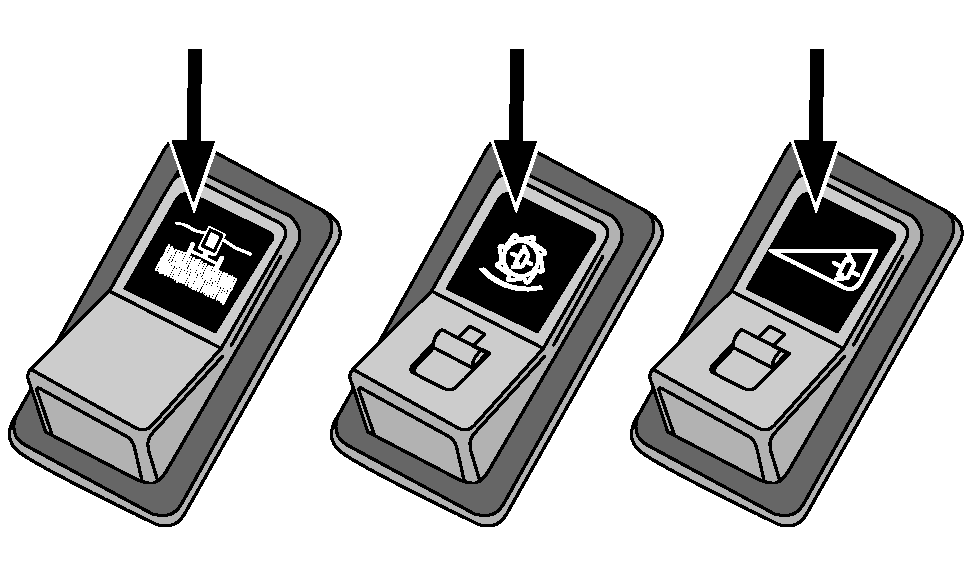

4. Move road safety switch to field position.

IMPORTANT: Always engage separating system with engine in slow idle.

5. Switch on separator.

6. Engage header.

ML70882,00009E0 -19-16JUN06-2/4

7. Set engine to maximum rpm.

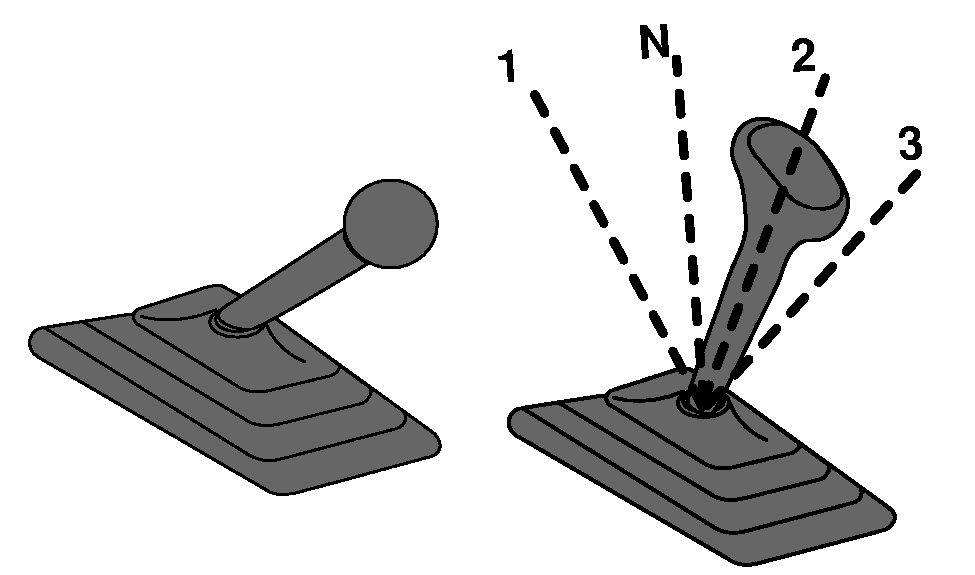

8. Engage a gear.

NOTE: Second gear is the most indicated for all-around field performance. Third gear is not recommended for field operations, only for transport.

ML70882,00009E0 -19-16JUN06-3/4

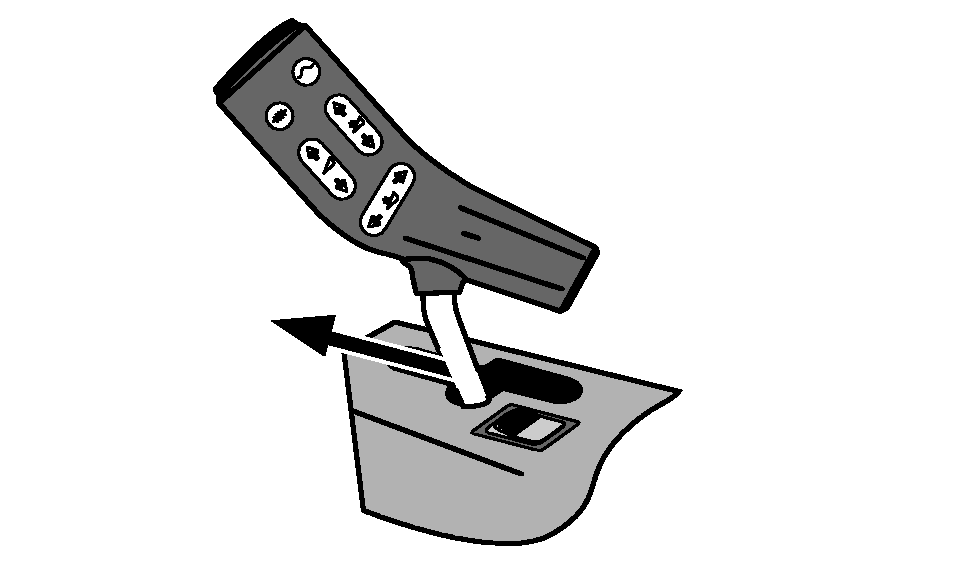

9. Move multi-function control handle to adapt ground speed to harvesting conditions.

ML70882,00009E0 -19-16JUN06-4/4
