Replacement of Straw Chopper Counterknives

NOTE: The counterknives are located at the front of the straw chopper.

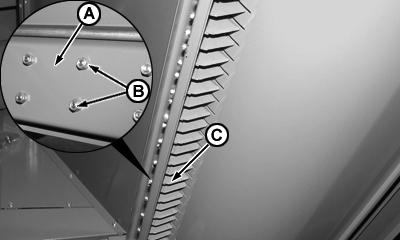

Remove cap screws (B) and withdraw counterknife (C) from its housing (A). Install the new counterknife.
