Starter Motor Relay

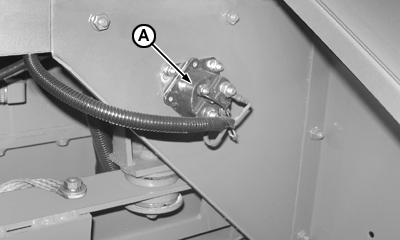

Solenoid of starter motor is powered via relay (A). The relay is attached to the left-hand rear grain tank support.

Access is possible via an opening in the grain tank bottom.

CQ266260

ML70882,00009E6 -19-16JUN06-1/1
