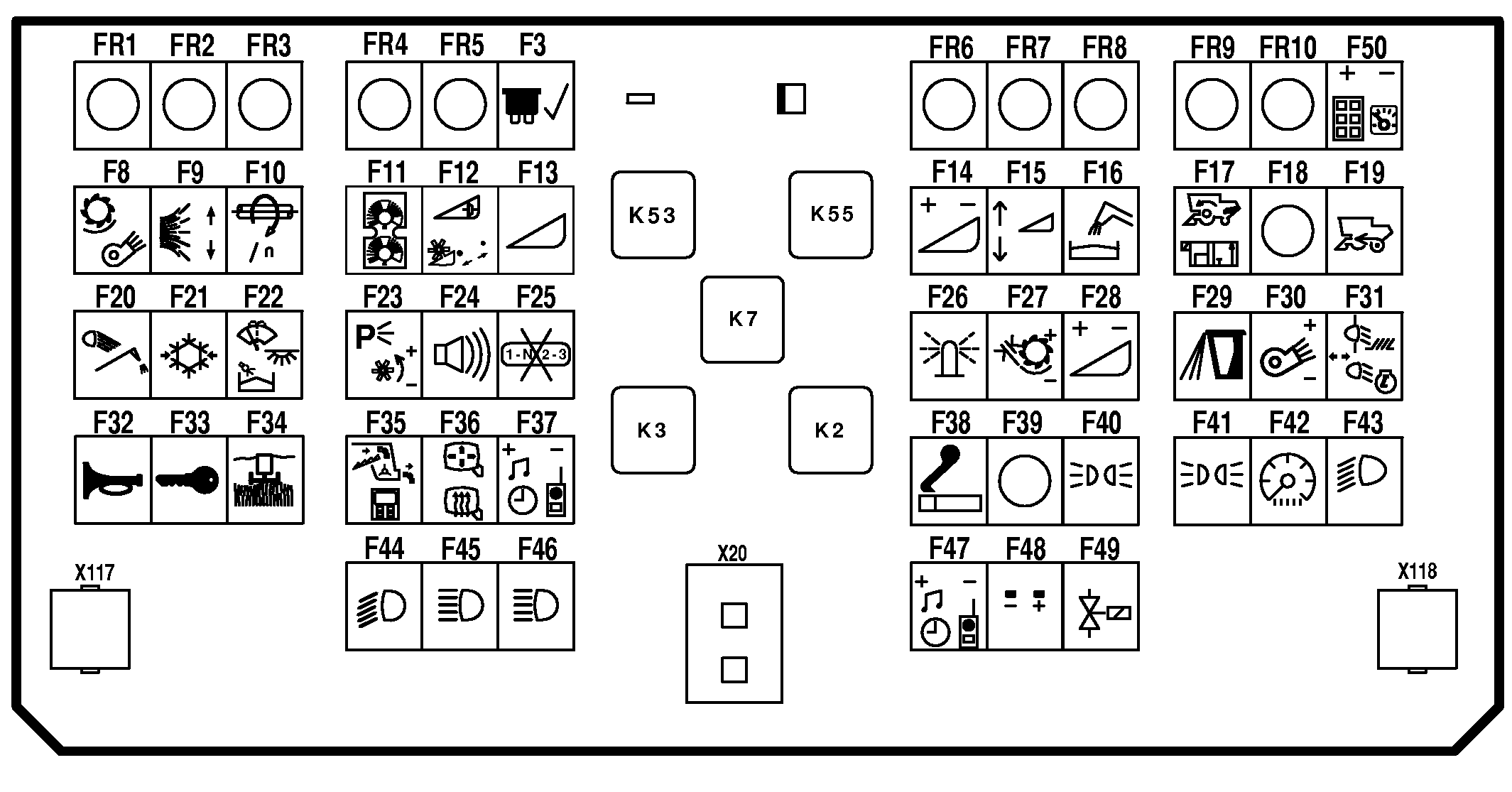

F3-Fuse Tester
F8-7.5 A fuse - Fan and threshing cylinder speed adjustment
F9-Not used
F10-7.5 A fuse - Low shaft speed monitor system
F11-7.5 A fuse - Harvest performance monitor
F12-15 A fuse - Head and reverser drive
F13-7.5 A fuse - Head controls
F14-7.5 A fuse - Power supply to head control circuit board
F15-7.5 A fuse - Head raise/lower
F16-7.5 A fuse - Grain tank unloading system
F17-7.5 A fuse - Main power supply to threshing and splitter relays
F18-Not used
F19-Not used
F20-7.5 A fuse - Unloading auger light
|
F21-30 A fuse - Air conditioning system
F22-15 A fuse - Windshield wipers, grain tank light and cab dome light
F23-15 A fuse - Brake lights, reel speed adjustment
F24-7.5 A fuse - Reverse travel warning siren
F25-Not used
F26-15 A fuse - Beacon lights
F27-30 A fuse - Concave adjustment
F28-7.5 A fuse - Power supply to head control circuit board
F29-30 A fuse - Work lights on cab roof
F30-30 A fuse - Fan adjustment
F31-15 A fuse - Turn signal lights, cleaning shoe and engine compartment lighting
F32-15 A fuse - Horn
F33-30 A fuse - Starter key switch
|
F34-15 A fuse - Field / road safety switch
F35-7.5 A fuse - Straw walker and straw chopper warning device
F36-Not used
F37-15 A fuse - Radio, CB and clock
F38-15 A fuse - Cigarette lighter socket
F39-Not used
F40-7.5 A fuse - Left clearance light
F41-7.5 A fuse - Right clearance light
F42-7.5 A fuse - Dash panel lighting
F43-7.5 A fuse - Right-hand low beam
F44-7.5 A fuse - Left-hand low beam
F45-7.5 A fuse - Left-hand high beam
F46-7.5 A fuse - Right-hand high beam
|
F47-7.5 A fuse - Radio, CB and clock
F48-7.5 A fuse - D+ alternator
F49-7.5 A fuse - Injector pump solenoid
F50-7.5 A fuse - Indicator lights, temperature gauge
FR1-7.5 A fuse - Spare
FR2-7.5 A fuse - Spare
FR3-7.5 A fuse - Spare
FR4-7.5 A fuse - Spare
FR5-15 A fuse - Spare
FR6-15 A fuse - Spare
FR7-15 A fuse - Spare
FR8-30 A fuse - Spare
FR9-30 A fuse - Spare
FR10-30 A fuse - Spare
K02-Power supply relay
K03-Power supply relay
K07-Work lights relay
K53-Threshing unit relay
K55-Field / road safety switch relay
|
