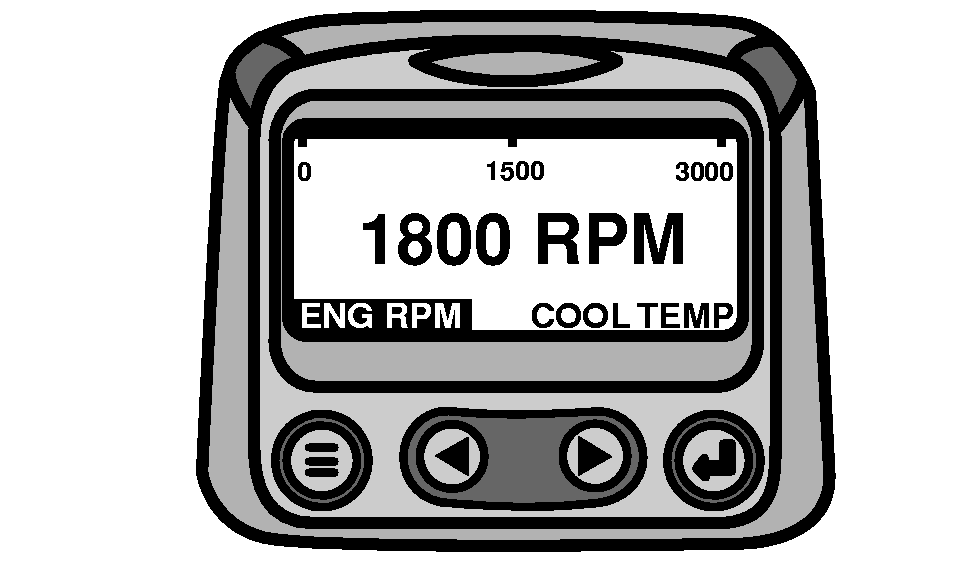

Engine Electronic System Diagnostic Gauge

This monitor has two LEDs that indicate the existence of active diagnostic trouble codes.

Red LED Activated: This means corrective action is immediately required. Do not operate combine until the problem is corrected.

Yellow LED Activated: This means a diagnostic trouble code has been generated. Stop the combine when convenient and determine the cause.

CAUTION: Do not try to repair the engine or its components.

For further information on activated codes consult your John Deere dealer.

ML70882,0000A49 -19-07AUG06-1/1
