Adjust Lateral Spacing between Threshing Cylinder Teeth and Concave Teeth

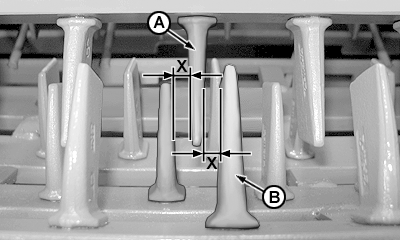

The teeth (A) of threshing cylinder must be centered in relation to the concave teeth (B).

If lateral spacing (X) is uneven between teeth (A) and (B) this could cause reduced threshing performance. Crop ears tips could pass through without being threshed on one side and grain crops could be damaged and straw could get very chewed on the other.

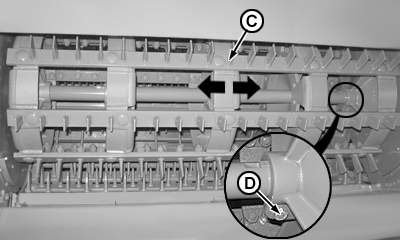

Adjust lateral spacing (X) moving threshing cylinder (C) on its shaft. After adjusting, attach threshing cylinder on shaft, tightening clamp bolts (D) to specification.

Specification

Bolts for attaching brackets of threshing cylinder on shaft -Torque 78 N·m (56.5 lb-ft)


A-Teeth
B-Teeth
C-Threshing Cylinder
D-Bolts
X-Lateral spacing

CQ258260
CQ258330

OU64006,0000036 -19-07FEB06-1/1
