Check Chopper Gear Case Oil Level

1. NOTE:


   T8T2444-UN-06MAY15

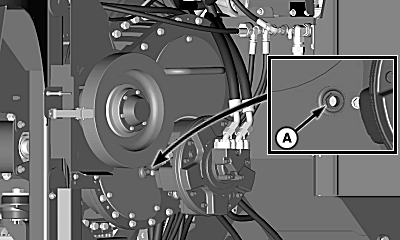

   Chopper Gear Case (Style A) Oil Level


   T8T4776-UN-01SEP16

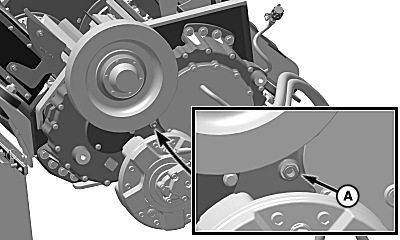

   Chopper Gear Case (Style B) Oil Level

   A - Sight Gauge

   Always check fluid level when oil is cold.

   Park harvester on a level surface.

---




2. Oil level must be at top of sight gauge (A).

3. To add oil, see Change Chopper Gear Case Oil in Maintenance—Every 1000 Hours section.
