Clean Out Machine (Periodic)


Cleaning Information

CAUTION:

TS206
TS206-UN-15APR13

ALWAYS wear proper protective equipment when cleaning machine.

IMPORTANT: Crop material and other debris can accumulate in various areas, causing a fire hazard. Direction of wind, type of crop, and crop moisture content can all effect where and how much crop material and debris can accumulate. Inspect and clean these areas throughout the harvest day.

The machine must be inspected periodically throughout the harvest day. Buildup of crop material and other debris must be removed to ensure proper machine function to reduce the risk of fire.

Regular and thorough cleaning of machine combined with other routine maintenance procedures listed in the Operators Manual greatly reduce the risk of fire, chance of costly downtime, and improve machine performance.

Primary areas that must be inspected and cleaned are:

  • Engine compartment
  • Pump drive gear case and hydraulic hoses
  • Wiring harnesses, sensors, and control units
  • Exhaust
  • Cooling tower
  • Fuel tank
  • Crop dividers
  • Base cutter gear case
  • Extractor fans
  • Chopper gear case
  • Elevator
  • Ground drive components
  • Feed rollers

There are other areas that require regular cleaning but these areas provide the greatest impact on fire prevention. Using compressed air can ease cleaning.

Always follow all safety procedures posted on the machine and in the Operators Manual. Before carrying out any inspection or cleaning, always shut OFF engine, set park brake, and remove key.


Engine Compartment

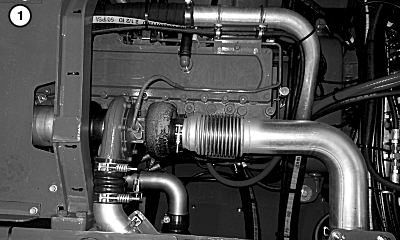

T8130000238
T8130000238-UN-23JAN13

CQ298956
CQ298956-UN-15APR15

Tier 2/Stage II And Tier 3/Stage III

T8130000324
T8130000324-UN-23JAN13

Inspect and clean areas around the engine. Primary areas that must be cleaned are:

  1. Turbocharger

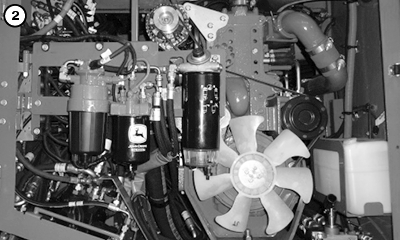

  2. Underneath Engine

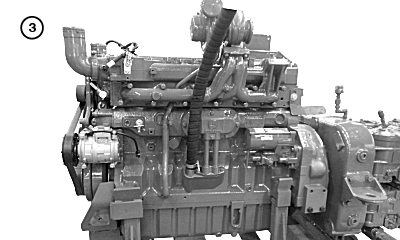

  3. Exhaust Manifold

Pump Drive Gear Case and Hydraulic Hoses

T8T2429
T8T2429-UN-24APR15

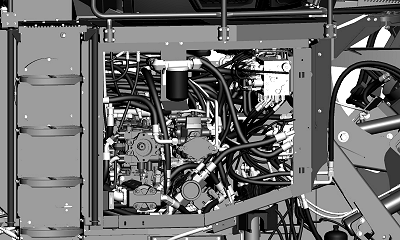

Right-Hand Side Of Machine Shown

Inspect and clean areas around the pump drive gear case.


Wiring Harnesses, Sensors, and Controllers

T8T414
T8T414-UN-15MAY14

T8T415
T8T415-UN-15MAY14

T8T416
T8T416-UN-15MAY14

Shield Removed For Clarity

T8T417
T8T417-UN-15MAY14

T8130000323
T8130000323-UN-23JAN13

Tier 2/Stage II and Tier 3/Stage III

Inspect and clean areas around the electrical components. Primary areas that must be cleaned are:

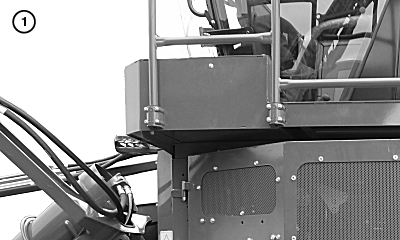

  1. Battery Compartment

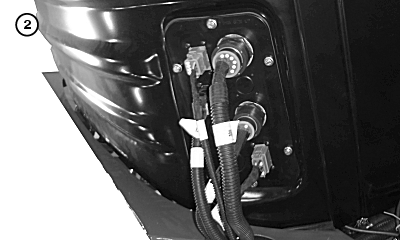

  2. Cab Connections

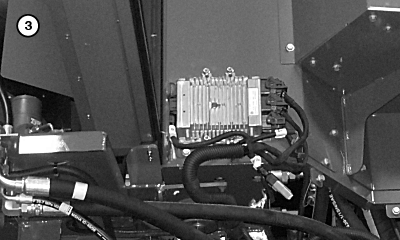

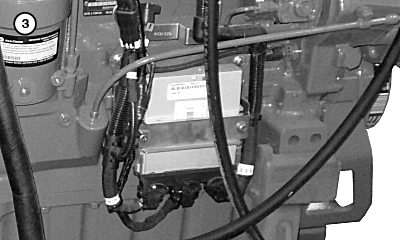

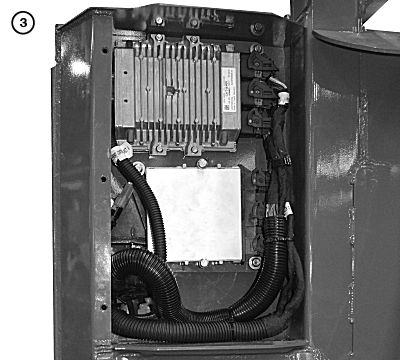

  3. Controller Units

Exhaust

T8T1556
T8T1556-UN-05NOV14

Tier 2/Stage II And Tier 3/Stage III

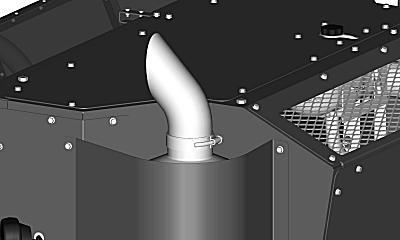

Inspect and clean areas around exhaust.


Cooling Package

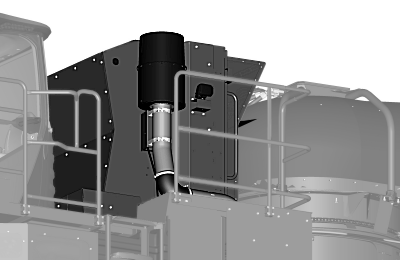

T8T419
T8T419-UN-15MAY14

Inspect and clean areas around the cooling package. Primary areas that must be cleaned are:

  1. Fan (Motor, Blades, Grill)
  2. Radiators and Intake Screen

Fuel Tank

T8T422
T8T422-UN-15MAY14

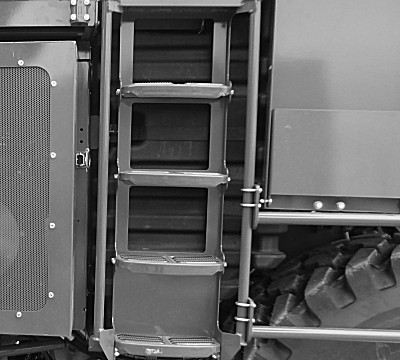

Inspect and clean areas around the fuel tank (Shutoff valve, vent, filler cap, and filters).


Crop Dividers

T8T566
T8T566-UN-13JUN14

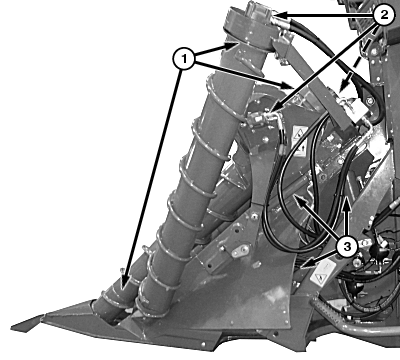

Inspect and clean areas around the crop dividers. Primary areas that must be cleaned are:

  1. Top and Bottom of Scroll
  2. Motor and Hoses
  3. Lift Arms and Cylinder

Base Cutter Gear Case

T8T427
T8T427-UN-16MAY14

T8130000328
T8130000328-UN-23JAN13

Inspect and clean areas around the base cutter assembly. Primary areas that must be cleaned are:

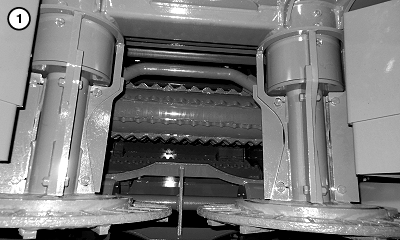

  1. Legs, Side Shields, and Disks

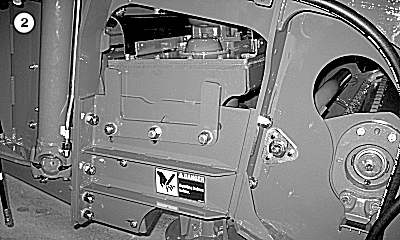

  2. Above Gear Case, Motors, Hoses, and Under Shields

Extractor Fan—Primary and Secondary

T8T176
T8T176-UN-11APR14

T8T2921
T8T2921-UN-10AUG15

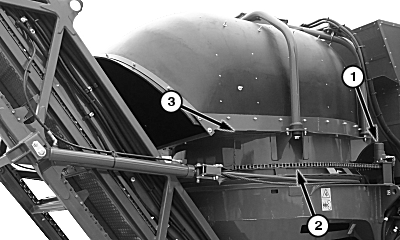

Inspect and clean areas around the extractor. Primary areas that must be cleaned are:

  1. Rotation Motor
  2. Chain
  3. Rotation Ring

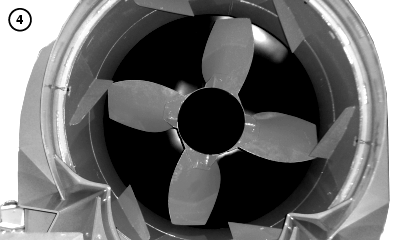

  4. Fan Assembly and Ring

Chopper Gear Case (Style A) and Chopper Gear Case (Style B)

T8T2450
T8T2450-UN-07MAY15

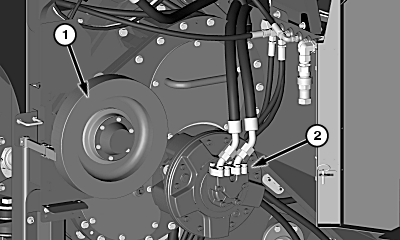

Chopper Gear Case (Style A)

T8T4780
T8T4780-UN-01SEP16

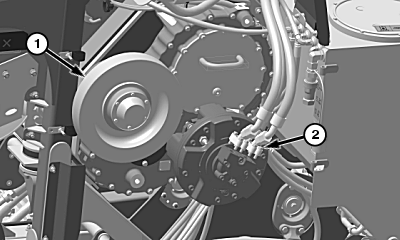

Chopper Gear Case (Style B)

Inspect and clean areas around the chopper assembly. Primary areas that must be cleaned are:

  1. Flywheel
  2. Drive Motors and Hoses

Elevator

T8130000355
T8130000355-UN-24JAN13

T8130000354
T8130000354-UN-24JAN13

T8T161
T8T161-UN-22SEP14

T8T1779
T8T1779-UN-13JAN15

Inspect and clean areas around the elevator. Primary areas that must be cleaned are:

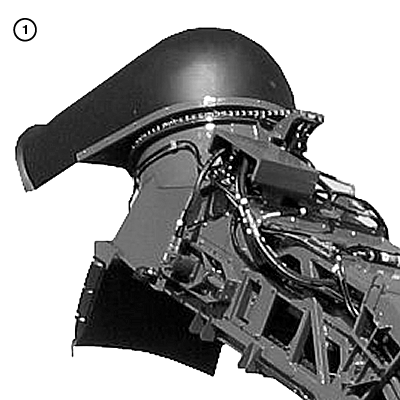

  1. Discharge, Motors, Tension Housing, and Secondary Extractor (if equipped)

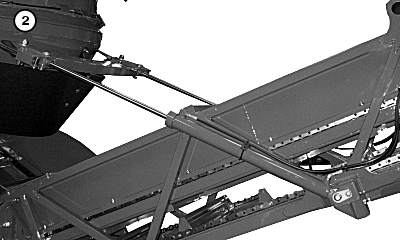

  2. Hinge and Raise and Lower Cylinders

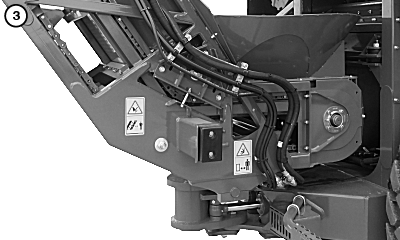

  3. Swing Table, Basket, and Sprockets

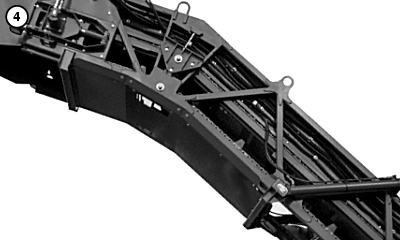

  4. Elevator Chain Guides, Wear Strips, Frame, and Cart Guard

Drive Components

T8T423
T8T423-UN-15MAY14

T8T568
T8T568-UN-13JUN14

Inspect and clean areas around the drive components. Primary areas that must be cleaned are:

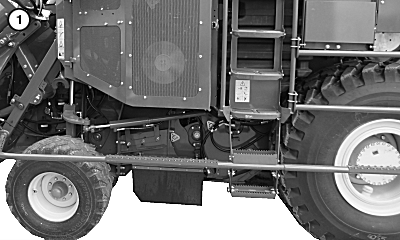

  1. Wheels, Final Drives, Axles, Suspension Components, and Steering Linkage.

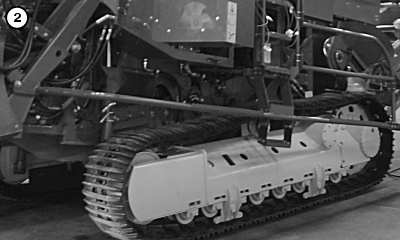

  2. Tracks, Drive Sprocket, Idlers, Rollers, Axles, and Suspension Components.

Feed Rollers

T8T567
T8T567-UN-13JUN14

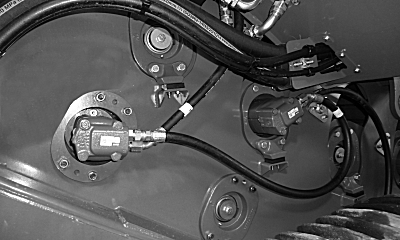

Clean feed rollers of excess mud and leaf trash.

AS09261,000011B-19-20160930
