Topper System
T8120002603-UN-03JAN13

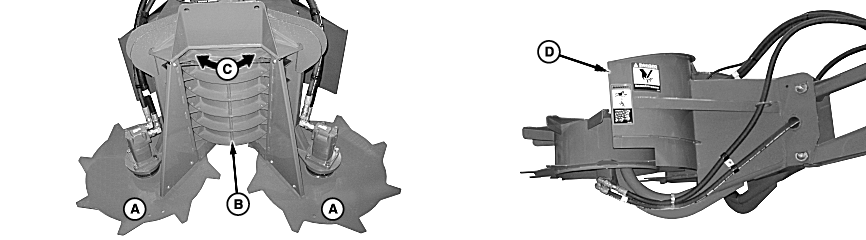

A - Gathering Disks
B - Severing Disks
C - Rotational Direction
D - Whole Topper
The gathering disks (A) on each side of the topper, gather the cane tops and feed them to the severing disks (B), located in the center. The rotational direction (C) of the severing disks determine if the cane tops are thrown left or right. The direction is selected by the operator in the cab. Once the cane is topped, the severed tops are discharged by the rotary motion of the gathering disks.The whole topper (D) operates in the same manner.
IMPORTANT: ALWAYS allow topper to completely stop rotating before changing rotational direction.
|
