Grease Front Wheel Hub Bearings

1.

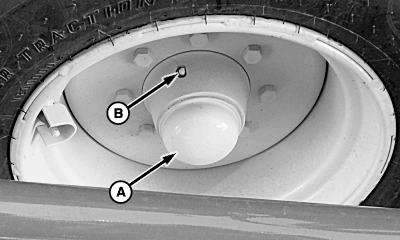

   T8130000204-UN-21JAN13

   A - Hub Cap

   B - Grease Fitting

   Carefully pry hub cap (A) off the front wheel hub assembly.

---




2. Inspect the bearing inside hub for adequate grease. If the grease has hardened or is extremely dirty, remove it from the hub.

3. To add grease to the front hub assembly:

   1. Elevate the front wheel off the ground (see Jack Locations section).

   2. Apply three pumps of grease into the grease fitting (B), and disconnect the grease gun.

   3. Rotate the wheel assembly for three turns. Reconnect the grease gun and repeat this procedure until fresh grease discharges from all locations on the bearing.

   4. Pack the hub cap (A) with fresh grease and reinstall it on the hub assembly.
