Clean Engine Air Pre-filter Outer Screen

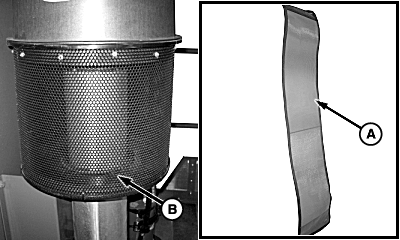

  1. T8130000347
    T8130000347-UN-24JAN13

    A - Outer Screen

    B - Inner Screen

    Unhook fastener strip, and remove outer screen (A) from air pre-cleaner.


  2. Clean outer screen with compressed air.

  3. Wipe inner screen (B) clean.

  4. Reattach outer screen around pre-cleaner.

KR43067,0000CE4-19-20130125
