Engine Oil Sample Collection

IMPORTANT: Take care not to contaminate the engine oil. Clean the area around the components before performing any service.

  1. Cut the hose (A) so that it is 250 mm (9.84 in.) longer than the dipstick.

    CQ294506
    CQ294506-UN-30APR13

    CQ294507
    CQ294507-UN-30APR13


  2. Attach one end of the hose (A) to the pump body (B) and then tighten the nut (C).

  3. Install the bottle (D) by turning it clockwise.

    NOTE: The end of the hose (A) must have a minimum length "X" inside the bottle (D) so that it does not stay entirely in.

    IMPORTANT: Keep the bottle cap (D) inside the bag supplied with it, thus avoiding its contamination.

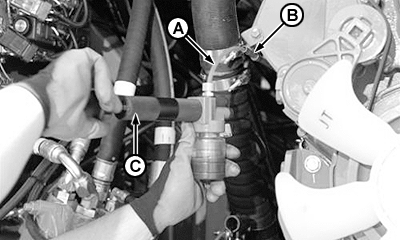

  4. Insert the hose (A) on the tube (B) of the dipstick.

    CQ294501
    CQ294501-UN-30APR13

    IMPORTANT: Handle the hose (A) carefully avoiding its contact with any part of the harvester, and thus contaminating the oil.


  5. Operate the pump (C) manually for the oil to be sucked. If the oil is not sucked in, push the hose (A) a little more into the tube (B).

    IMPORTANT: Never turn the pump (C) upside down, keep it in an upright position. Failure to observe this procedure may cause its contamination.

  6. When the bottle (A) is full, loosen the nut (B) for air to enter and the oil stops from being sucked.

    CQ294508
    CQ294508-UN-30APR13

    CQ294509
    CQ294509-UN-30APR13


  7. Remove the hose from the dipstick tube.

    NOTE: Be very careful when removing the hose so you do not spill any oil on the ground.

  8. Remove the bottle (A) from the pump body by turning it counterclockwise.

    NOTE: After removing the bottle (A), store the pump properly, ensuring its no contamination.

  9. Cap the bottle (A).

  10. With the pump (A) in the vertical position, push the hose (B) down and wipe all traces of oil.

    CQ294510
    CQ294510-UN-30APR13

    CQ294511
    CQ294511-UN-30APR13


  11. Turn the pump (A) 180°, and wipe all traces of oil again.

  12. Pull out the hose (B) to outside the pump (A).

  13. Discard in a proper container the hose (A) and any other material that is contaminated with oil during the collection procedure.

    CQ294513
    CQ294513-UN-30APR13

    CQ294512
    CQ294512-UN-30APR13


  14. Fill out the form (B) with the requested data and place it inside the bag (C).

  15. Place the bottle (D) into the bag (C) so that it is facing up (standing).

  16. Deliver the sample collected to your John Deere dealer's service department, and the dealer will send the sample to the laboratory for analysis.
