Communications/CB Radio Mounting

IMPORTANT:

H94464
H94464-UN-14MAY10

H96333
H96333-UN-14MAY10

CQ298926
CQ298926-UN-20MAR15

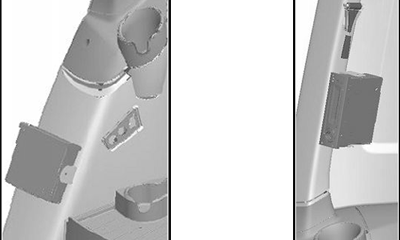

Right-Hand Side Location / Rear Cornerpost Location (Right-Hand Rear)

A - Antenna Mount

B - Antenna Cable

Do not install a radio requiring more than 3 amps or electrical system may malfunction.

To install additional communications radio, see your John Deere dealer.

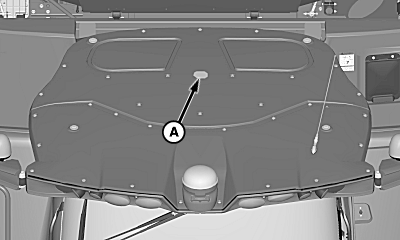

Antenna mount (A) is located in center of cab roof.

  1. Remove dust cap from antenna base.
  2. Remove brass nut from antenna base.
  3. Discard rubber washer.
  4. Reinstall antenna base with O-ring facing downward.
  5. Install antenna.

NOTE: Remove cup holder to locate antenna cable and route though opening.

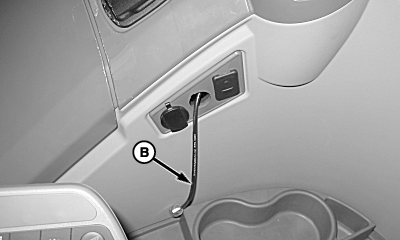

Antenna cable (B) is located on right-hand side of cab under armrest console.

IMPORTANT: Cornerpost cover must be removed before drilling. Be careful not to damage wiring harnesses and coolant hoses in locations shown when drilling holes or installing hardware.

Use bracket supplied by manufacturer as a template to locate and drill holes as required in various locations shown. Use self-tapping screws or cap screws with nuts to mount bracket.

NOTE: Certain broadcast bands may cause interference with the position receiver. Select a different broadcast band or see your John Deere dealer if signal losses are noticed with the position receiver.
