Check Fuel Tank Breather

T8T549
T8T549-UN-10JUN14

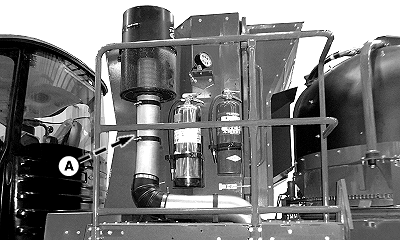

A - Fuel Tank Breather Assembly

The fuel tank breather assembly (A) is on the left-hand side of the cooling tower, behind the pre-cleaner pipe.

  1. Verify that breather is clean and unobstructed.

  2. Inspect hose for cracking, cuts, or damage.

OU90500,00003BC-19-20150323
