Remove and Install Air Conditioning Fresh Air Filter

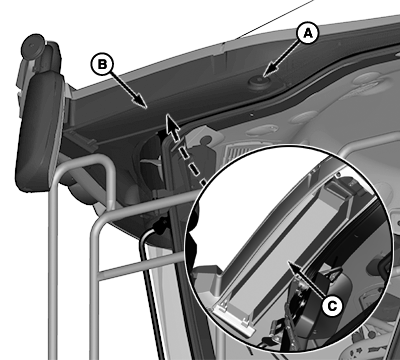

  1. CQ298929
    CQ298929-UN-24MAR15

    A - Knob

    B - Dust Cover

    C - Fresh Air Filter

    Loosen the knob (A) and remove the dust cover (B).



  2. Remove fresh air filter (C).

  3. Clean inside the filter housing and dust cover using a damp cloth.

  4. Clean or replace fresh air filter.

  5. Reinstall the components in the reverse order.

OU90500,00003C6-19-20150324
