Remove and Install Air Conditioning Recirculation Filter

1.

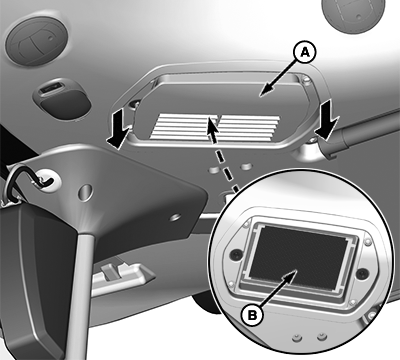

   CQ298930-UN-24MAR15

   A - Cover

   B - Recirculation Filter

   Remove the cover (A) pulling it down.

---




2. Remove recirculation filter (B).

   NOTE: Pull by plastic edge to not damage the recirculation filter.

3. Clean inside the filter housing and cover using a damp cloth.

4. Clean or replace recirculation filter.

5. Reinstall the components in the reverse order.
