Check Chopper Vibration Isolators

CQ298931
CQ298931-UN-25MAR15

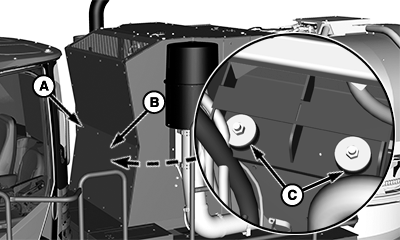

Front Chopper Vibration Isolators

CQ298932
CQ298932-UN-25MAR15

Rear Chopper Vibration Isolators

A - Screws (14 used)

B - Cover

C - Vibration Isolators (4 used)

  1. Remove screws (A) and cover (B) to access front chopper vibration isolators (C).

  2. Inspect chopper vibration isolators (C). If cracked, damaged, or missing; contact your authorized John Deere dealer.

  3. Reinstall cover and screws in reverse order of removal.

OU90500,00003C9-19-20150325
