Pump Drive, Base Cutter, and Chopper Gear Case Oil

CQ298934-UN-31MAR15

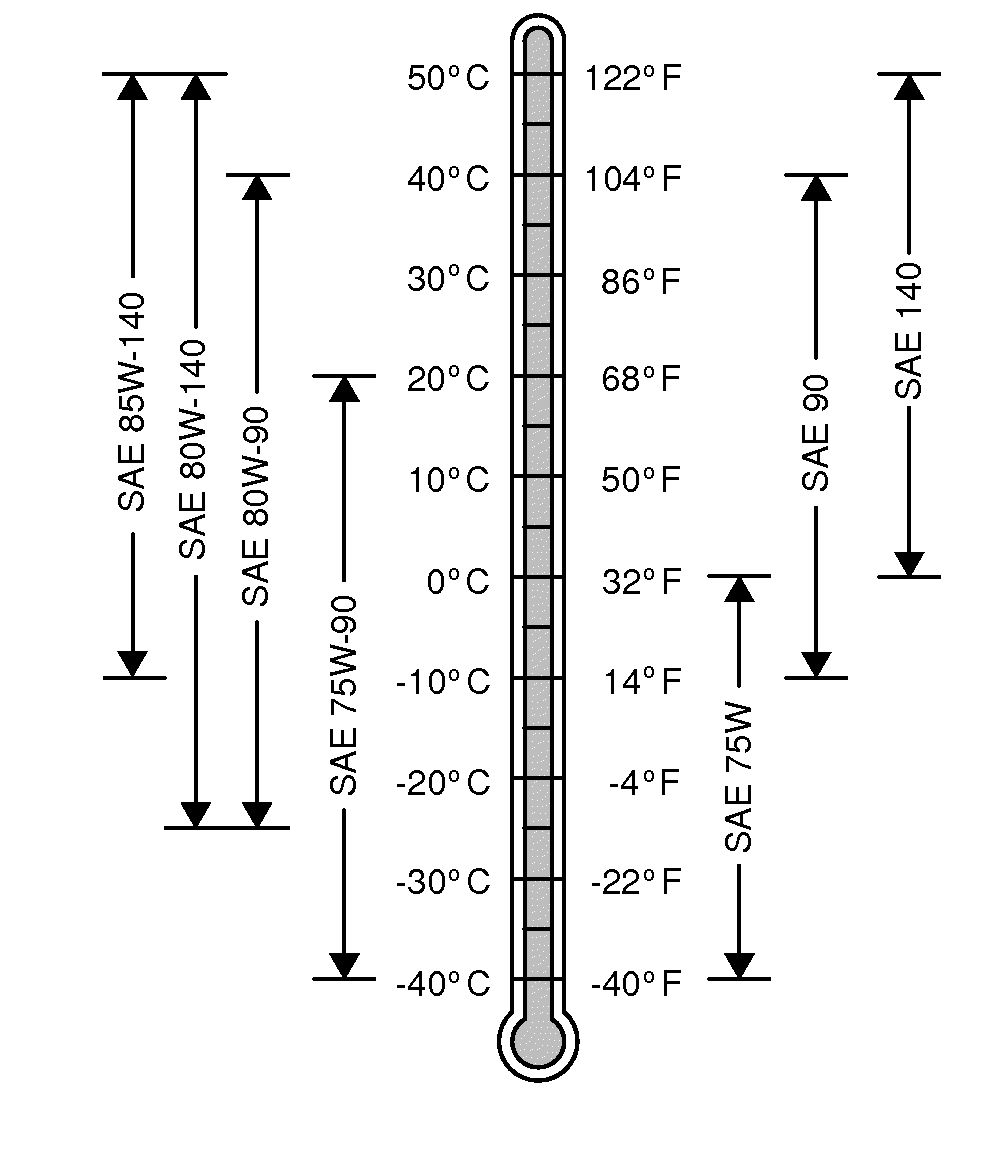

Depending upon the expected air temperature range during the drain interval, use oil viscosity shown on the adjoining temperature chart.

John Deere 85W-140 API GL-5 gear oil is recommended. If other oils are used, they must meet performance requirements of:

• API Service Classification GL-5
