Hydraulic Fluid

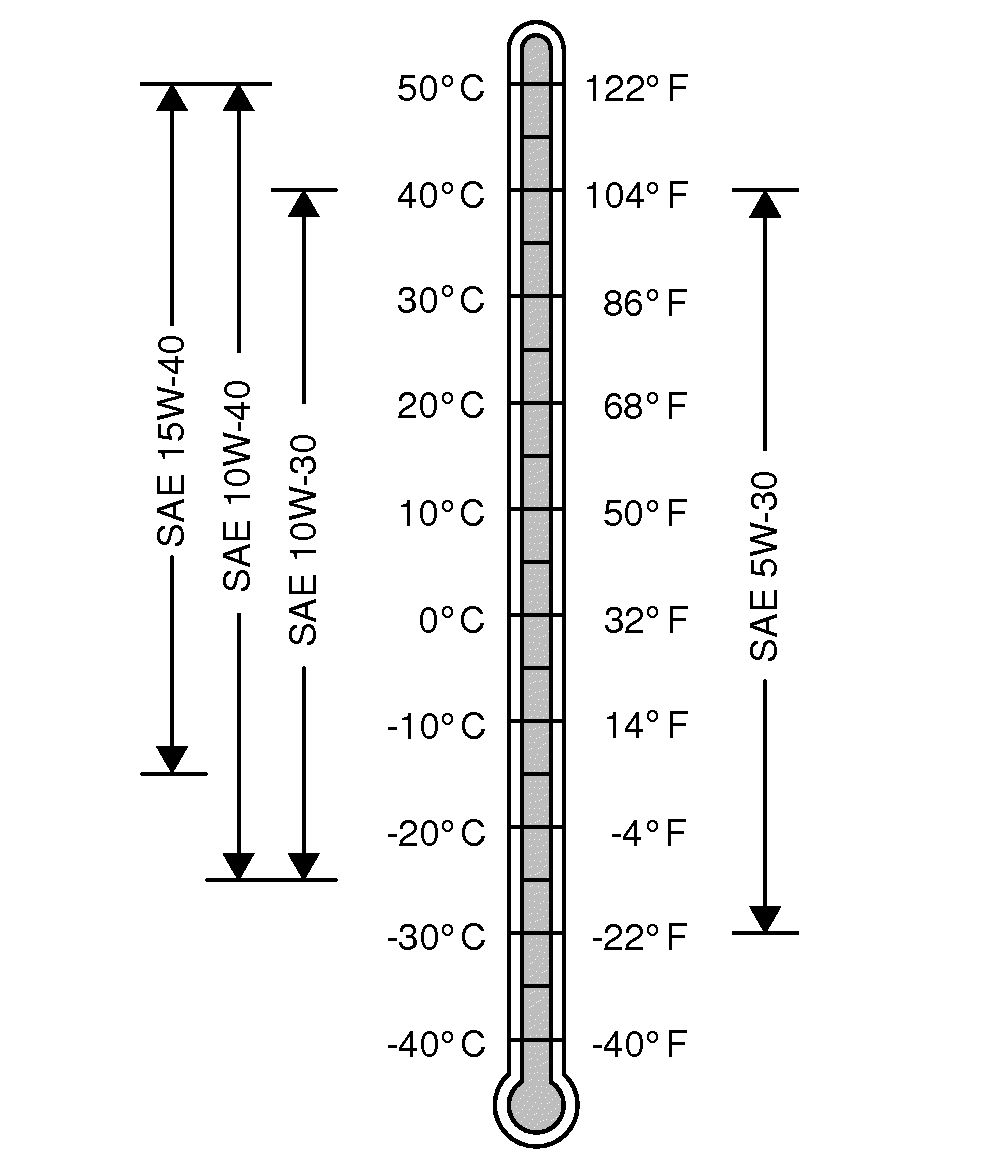

CQ298938-UN-06APR15

NOTE: Before filling, make sure of fluid specification present in the hydraulic system to not to mix different fluids.

John Deere Plus-4™ or SAE 10W-30 API SL/CF or higher fluids are recommended.

Other fluids may be used if they are in accordance with at least one of the following specifications:

• ISO VG 68, for wide temperature range as:
  • ASTM 6158-05 (Fluid HV)
  • ISO 11158 (Fluid HV)
  • DIN 51524 Part 3 type HVLP
