Replace Tail Lights

1.
   T8140000082-UN-27FEB14


   CQ298793-UN-21NOV14

   A - Cap Screws (2 used)

   B - Cap Screws and Washers (2 used)

   C - Tail light Assembly

   D - Wiring Harness Connector

   E - Lock Nuts and Washers (2 used)

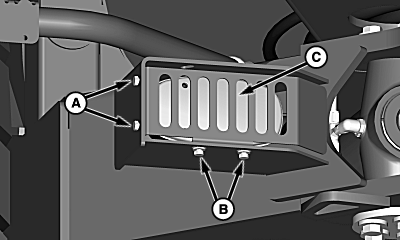

   Remove and retain cap screws (A) and cap screws and washers (B).

---

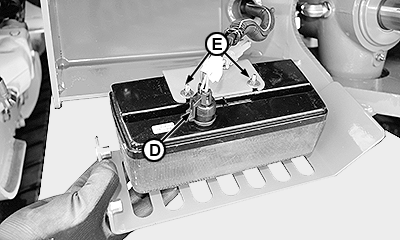

2. Remove tail light assembly (C) and disconnect wiring harness connector (D).

3. Remove and retain lock nuts and washers (E).

4.
   CQ298794-UN-19SEP14

   A - Screws (2 used)

   B - Lens

   C - Hazard and Turn Signal Bulb

   D - Taillight Bulb

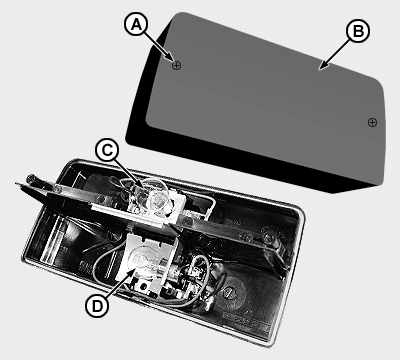

   Remove and retain screws (A) and lens (B).

---




5. Push and turn bulb (C) or (D) counterclockwise and remove.

6. Replace bulb.

7. Push and turn clockwise bulb (C) or (D) to install into tail light assembly

   NOTE: There is a left-hand and right-hand light assembly. When installed, the red lenses MUST be in bottom and outside position and yellow lens in top position.

8. Install in reverse order.

9. Repeat on remaining tail light.
