Light Switches

NOTE:

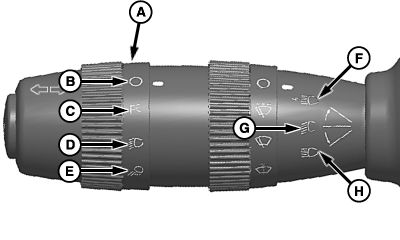

H99531-UN-22JUN11

Steering Column Light Selection Switch

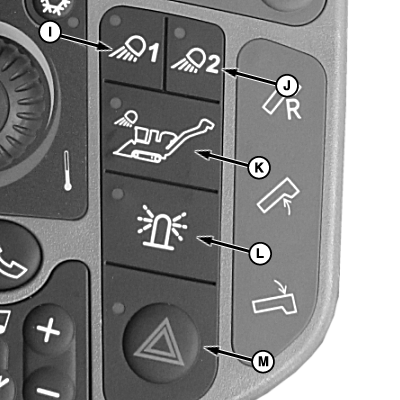

T8T541-UN-03JUN14

Armrest Light Switches

A - Light Selection Switch

B - OFF Position

C - Park Light Switch

D - Road Light Switch

E - Field Light Switch

F - Momentary High Beam

G - Low Beam Position

H - High Beam Position

I - Not Used

J - Engine Compartment Lights Switch

K - Auxiliary Field Lights Switch

L - Beacon Lights Switch

M - Hazard Warning Lights Switch

When all lights are first turned to the ON position with key switch OFF, there will be a slight delay before lights turn ON.

Light selection switch (A) on steering column is used to control the following:

• OFF Position (B)
• Park light switch (C) controls:
  • Marker lights
• Road light switch (D) controls:
  • Hazard (flashing marker) lights
  • Two low beam cab mounted headlights
• Field light switch (E) controls:
  • Eight cab mounted headlights

Light selection lever on steering column is used to control the high and low beam headlights:

NOTE: High beam indicator illuminates on cornerpost when lever is in the momentary high beam and high beam positions.

• Momentary High Beam (F):
  • Pull lever to upper position momentarily activates high beams.
• Low Beam Position (G):
  • Pull lever to middle position to operate low beams.
• High Beam Position (H):
  • Push lever to lower position to activate high beam headlights.

Armrest light switches are used to control the following:

• Not active (I):
  • This switch is not used.
• Engine Compartment lights switch (J) controls:
  • Two lights in engine compartment
• Auxiliary Field lights switch (K) controls:
  • Two cooling package auxiliary field lights
  • Two elevator auxiliary field lights
• Beacon lights switch (L) controls:
  • Beacon lights
• Hazard warning lights switch (M) controls:
  • Hazard (flashing marker) lights
  • Beacon lights
