Auxiliary Power Outlet Strip

NOTE:

H94452
H94452-UN-14MAY10

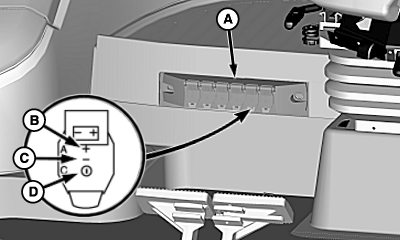

A - Auxiliary Power Outlet Strip

B - Spade Terminal (Direct Positive Power)

C - Spade Terminal Ground

D - Spade Terminal (Positive, Key Switched ON)

Maximum combined current draw for switch power is 20 amps and unswitched power is 30 amps.

Auxiliary power outlet strip (A) is equipped with six additional electrical outlets which are located at lower rear of right-hand window. These outlets provide key-switched or unswitched power.

Spade terminal (B) is direct positive power at all times.

Spade terminal (C) is ground.

Spade terminal (D) is auxiliary power (key switch ON).
