Service ADVISOR™ Diagnostic Connector

T8T1568-UN-13NOV14

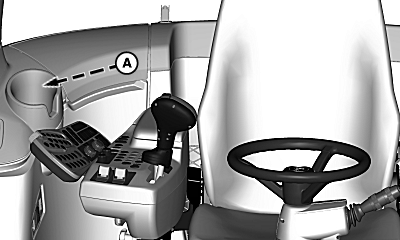

A - Diagnostic Connector
The Service
ADVISOR diagnostic connector (A) is on
right-hand side of operator seat, below cup holder.
Connector allows a computer to be attached for diagnostic purposes.
|
Service ADVISOR is a trademark of Deere &
Company
|
WM05597,0000DE4-19-20141126
|
|
