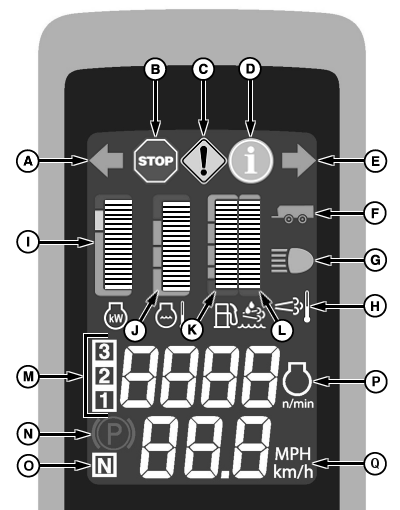

Upper Cornerpost Display

T8140000065-UN-06FEB14

(B)—Stop Engine Warning Indicator (Red): illuminates and requires machine be stopped at once and problem corrected. Diagnostic trouble code is shown on armrest display until problem is resolved.

(C)—Service Warning Indicator (Yellow): illuminates and flashes when a problem exists with machine. Requires machine be stopped at the earliest convenience. Diagnostic trouble code is shown on armrest display.

(D)—Information Warning Indicator (Blue): illuminates and flashes when diagnostic trouble code is active. Alerts operator to be aware of a condition. When warning is acknowledged, screen message disappears and warning indicator turns OFF.

(E)—Right Turn Signal Indicator: shows operator that a right turn is planned.

(F)—Not Used

(G)—High Beam Indicator:shows operator that high beam lights are currently selected.

(H)—Not Used

(I)—Engine Power Meter Indicator: shows operator percentage of power that engine is using at any given time.

IMPORTANT: If indicator moves into red region, engine power is maximized and machine could potentially stall. Reduce load on machine until indicator moves back into green and yellow regions.

• Green Region (35 to 100%)
• Yellow Region (101 to 110%)
• Red Region (111 to 114%)

(J)—Engine Temperature Indicator: 7—9 bars are displayed for normal operating temperature.

(K)—Fuel Gauge Indicator: shows how much fuel is left in the tank. When level reaches 10% (approximately one hour of operation) of remaining fuel, fuel indicator flashes, alarm sounds and low fuel message appears.

Indicator shows zero bars when fuel tank is empty.

If alarm sounds and engine temperature message appears, stop engine and check problem immediately.

(L)—Not Used

(M)—Transmission Gear or Range Indicator: “1” icon illuminates in forward.

(N)—Park Brake Indicator: illuminates when park brake is active.

(O)—Neutral Indicator: shows that machine is in neutral position.

(P)—Engine Speed Indicator: shows engine rpm speed.

(Q)—Ground Speed Indicator: shows machine ground speed (km/h or mph).
