Tilt the Cab
T8140000100-UN-04MAY15

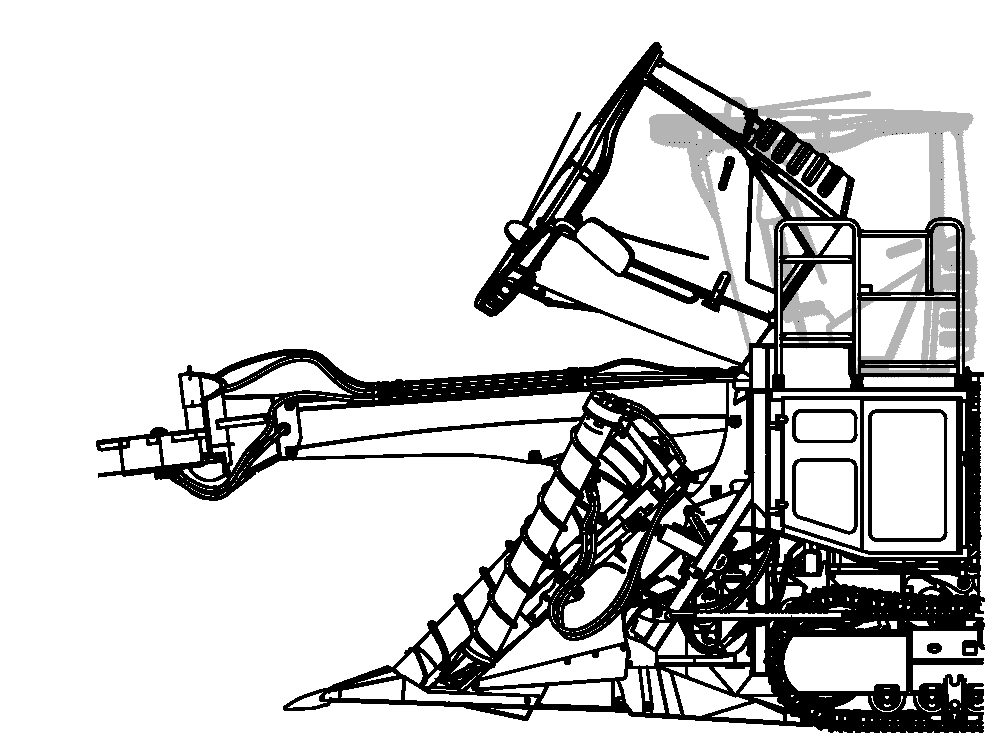

The entire cab tilts forward, providing access to engine
compartment for maintenance and repair by a qualified technician.
The cab pivots at front, raised by a single hydraulic cylinder. Make
sure that there are no people near the machine. Be sure that windows
and doors are closed, articles are removed from cab and refrigerator
(if equipped) and topper boom is completely lowered to prevent damage.
Shut OFF engine and remove key. Verify that cab safety stop is engaged
before entering area below cab. (See Cab Tilt Procedure in Maintenance—As
Required section).
|
|
WM05597,0000E2D-19-20150518
|
|
