Fuse Center

1. NOTE:


   T8T2017-UN-24FEB15

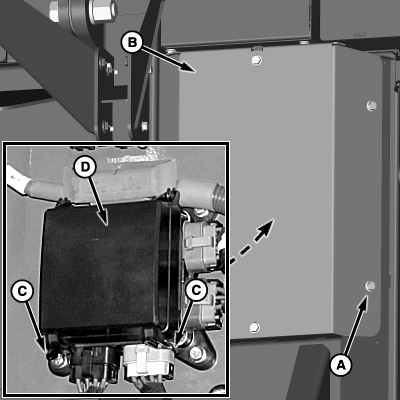

   A - Cap Screws (3 used)

   B - Electrical Panel Cover

   C - Tabs (2 used)

   D - Fuse Cover

   Fuse center is on front, left-hand side of harvester.

   Remove and retain cap screws (A) and electrical panel cover (B).

---




2. Press tabs (C) inward to open fuse cover (D).

T8T648-UN-25JUN14

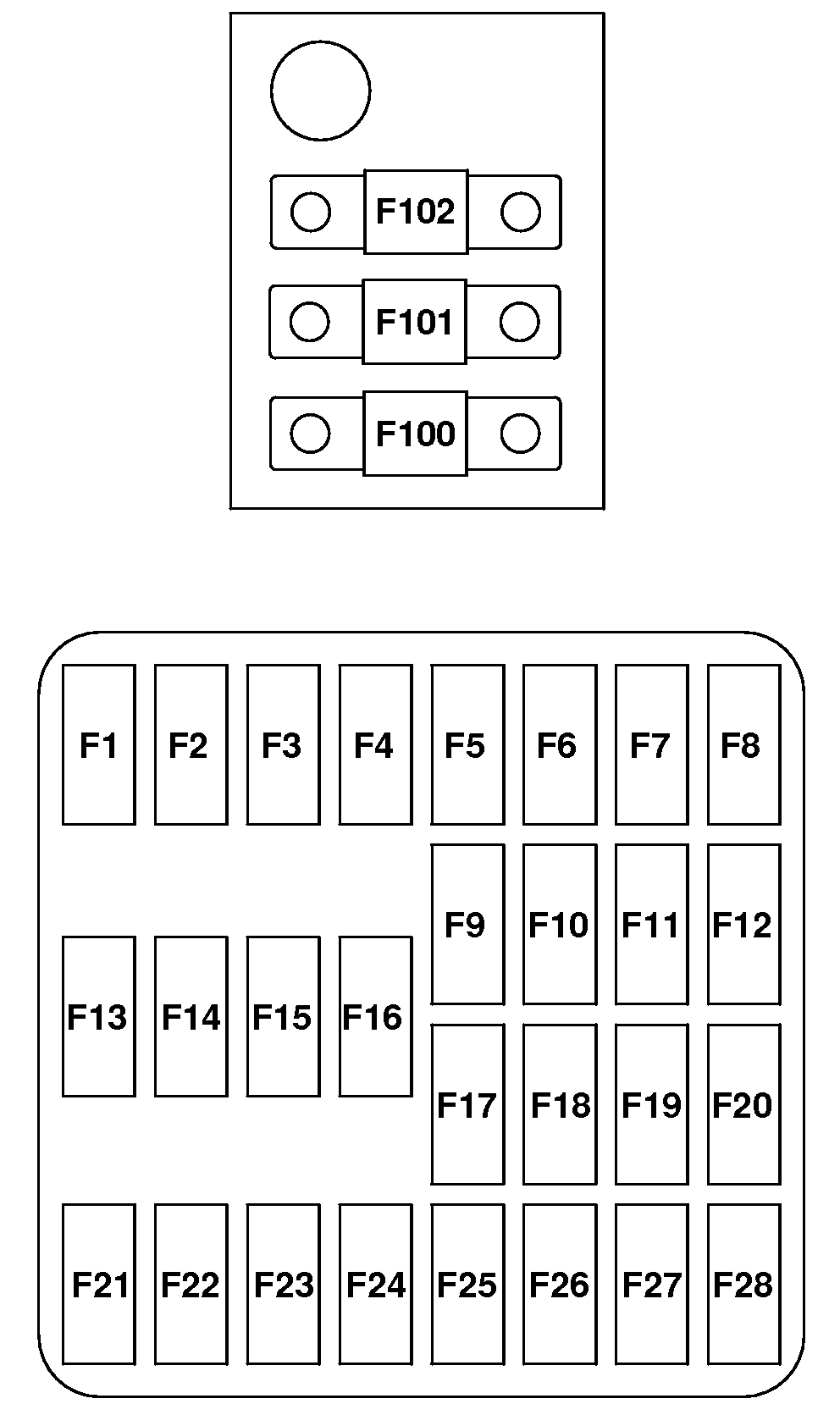

F102 - Cab Tilt Power— 40 amp

F101 - Rear Controller Power—60 amp

F100 - Front Controller Power—60 amp

F1 - Control Unit Cab Power 1—30 amp

F2 - Control Unit Cab Power 2—30 amp

F3 - Cab Power Module A Power 1—30 amp

F4 - Cab Power Module A Power 2—25 amp

F5 - Cab Power Module A Power 3—20 amp

F6 - Cab Power Module A Power 4—30 amp

F7 - Cab Power Module A Power 5—25 amp

F8 - Miscellaneous Cab Power 1—20 amp

F9 - Miscellaneous Cab Power 2—15 amp

F10 - Automatic Temperature Control Unit Power—10 amp

F11 - Accessory Power—20 amp

F12 - Miscellaneous Cab Power 3—30 amp

F13 - Auxiliary Power Outlets—15 amp

F14 - Dome Light and Power Mirrors—15 amp

F15 - Recirculation Fan Power 1—20 amp

F16 - Recirculation Fan Power 2—20 amp

F17 - Seat Compressor—20 amp

F18 - Engine Control Unit Power 1—25 amp

F19 - Engine Control Unit Power 2—25 amp

F20 - Transfer Pump—15 amp

F21 - Front Control Unit Power—10 amp

F22 - Rear Control Unit Power—10 amp

F23 - Propulsion Control Unit Power—15 amp

F24 - Cab Tilt Switch Power—15 amp

F25 - Rear Battery Auxiliary—25 amp

F26 - Battery Auxiliary—25 amp

F27 - Engine Control Unit Power 3—25 amp

F28 - Cab Unswitched Power—10 amp
